Magnetek 2001-G+M - Dimensions;Heat Loss - Open Chassis

IMPULSE•G+ Mini Advanced Instruction Manual - March 2014
2-7

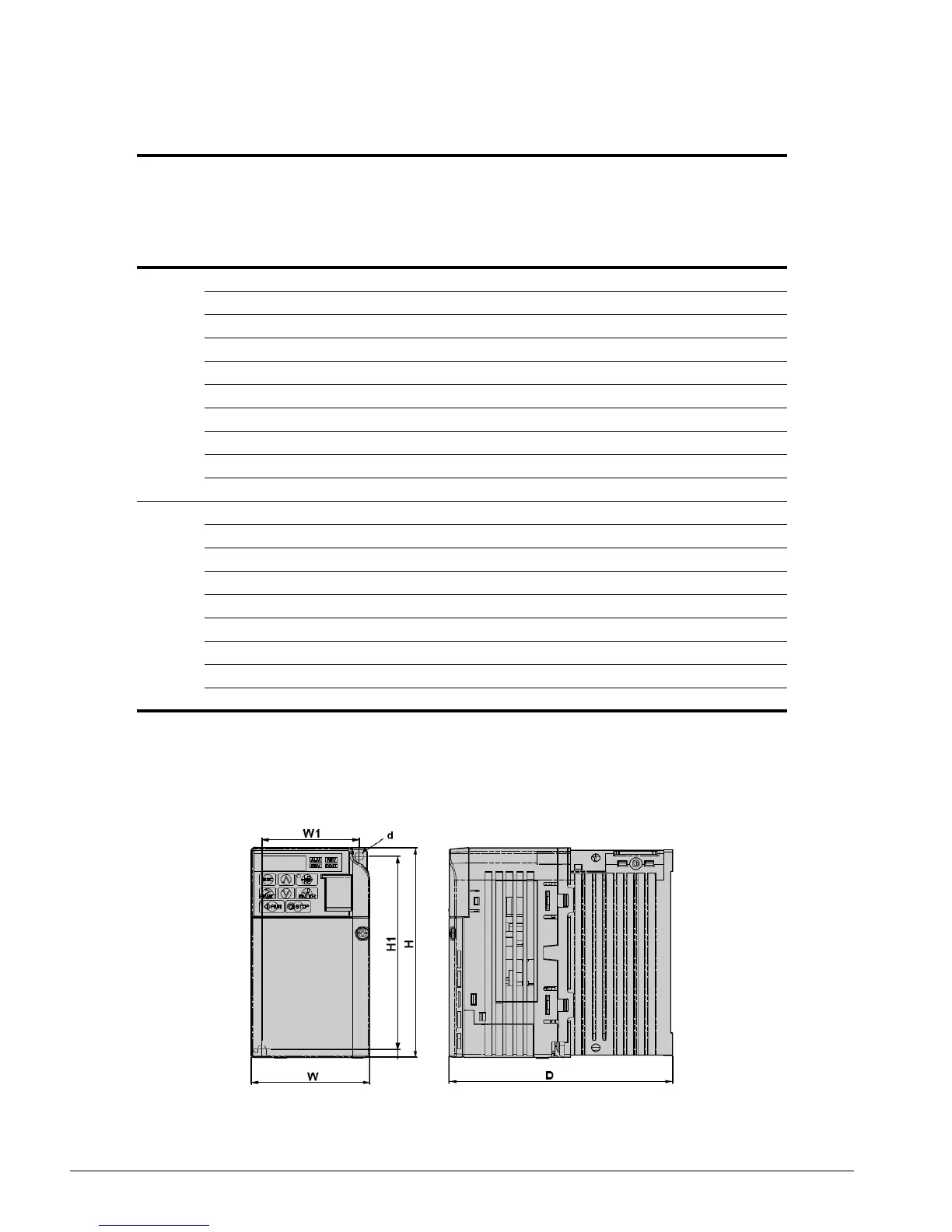

IMPULSE•G+ Mini Dimensions/Heat Loss - Open Chassis*
Voltage Model W H D W1 H1 d
Wt.
Lbs.
Total
Heat
Loss
(W)**
Dimensions in Inches
230V 2001-G+M 2.68 5.04 2.99 2.20 4.65 M4 1.3 14.7
2003-G+M 2.68 5.04 4.25 2.20 4.65 M4 2.0 24.0
2005-G+M 2.68 5.04 5.04 2.20 4.65 M4 2.4 36.7
2008-G+M 4.25 5.04 5.08 3.78 4.65 M4 3.7 61.9
2011-G+M 4.25 5.04 5.41 3.78 4.65 M4 3.7 81.3
2017-G+M 5.51 5.04 5.63 5.04 4.65 M4 5.3 122.7
2025-G+M 5.51 10.00 5.51 4.80 9.76 M5 8.4 248.5
2033-G+M 5.51 10.00 5.51 4.80 9.76 M5 8.4 282.6
2047-G+M 7.09 11.42 6.42 6.30 11.18 M5 12.1 389.7
2060-G+M 8.66 13.78 7.36 7.56 13.23 M5 20.3 563.8
460V 4001-G+M 4.25 5.04 3.19 3.78 4.65 M4 2.2 19.1
4002-G+M 4.25 5.04 3.90 3.78 4.65 M4 2.6 27.1
4003-G+M 4.25 5.04 5.41 3.78 4.65 M4 3.7 38.3
4004-G+M 4.25 5.04 6.06 3.78 4.65 M4 3.7 57.4
4009-G+M 5.51 5.04 5.63 5.04 4.65 M4 5.3 97.1
4014-G+M 5.51 10.00 5.51 4.80 9.76 M5 8.4 173.4
4018-G+M 5.51 10.00 5.51 4.80 9.76 M5 8.4 219.4
4024-G+M 7.09 11.42 5.63 6.30 11.18 M5 11.5 283.8
4031-G+M 7.09 11.42 6.42 6.30 11.18 M5 12.1 344.3
*NOTE: Applications such as high duty cycles in conjunction with high ambient temperatures or other unique
environmental conditions can impact drive ratings. Please consult factory. Due to ongoing improvements, data is
subject to change without notice.
** Heat loss for carrier frequency of 2.0 kHz (heavy duty).
