IMPULSE•G+ Mini Advanced Instruction Manual – March 2014
4-7
Quick Start Guide Information
Basic programming of the drive consists of entering motor parameters, choosing a motion, and
selecting a speed reference.
After applying power to the drive, the display will show the output frequency of 0.00.
Navigation Keys:

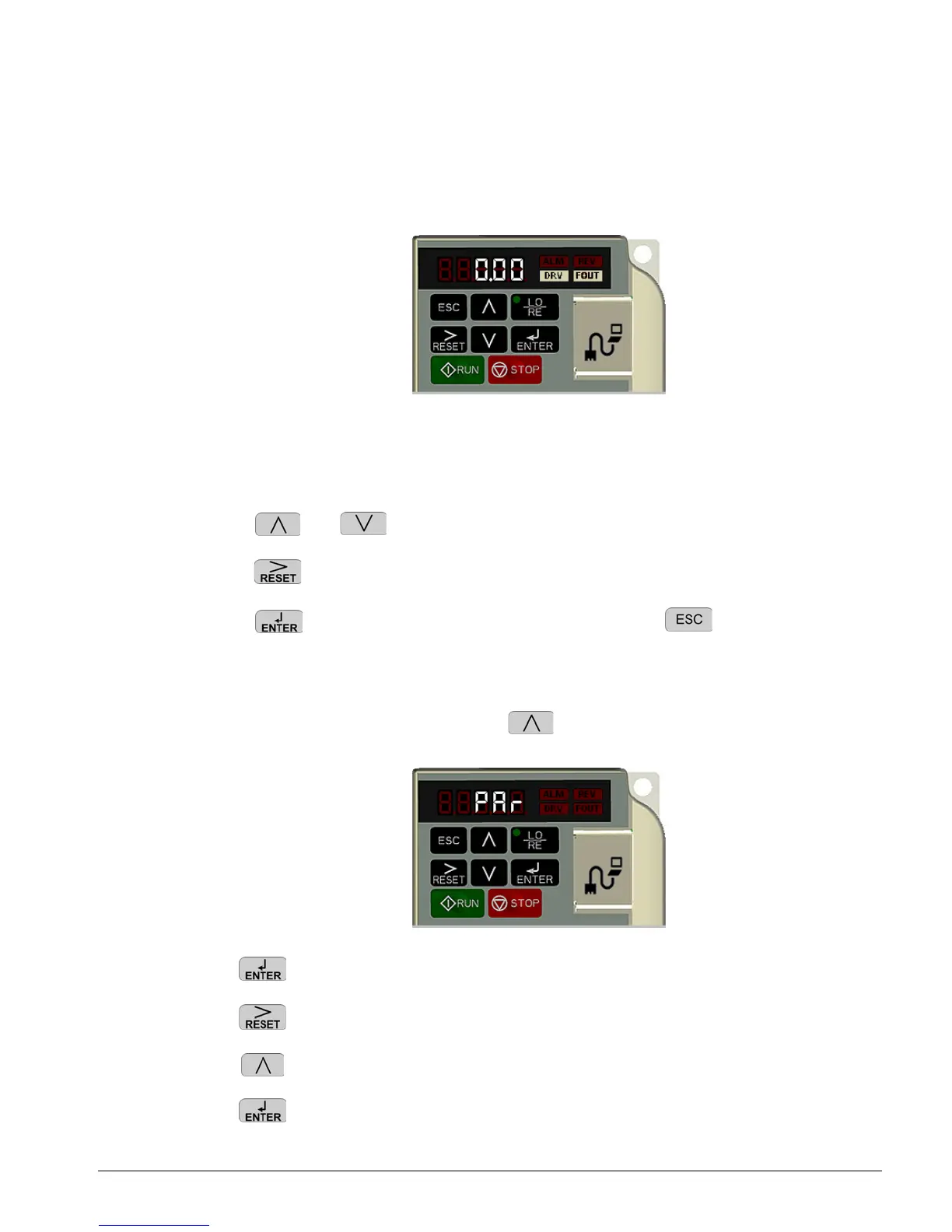

The above figure shows the keypad on the G+ Mini. These keys are used for navigation and for
changing various settings within the drive.
Use the and keys to change the display and/or change the value of a parameter.
Use the key to move the cursor to the right and to reset the drive after a fault.
Use the key to view and save any parameter changes or the key to exit without
saving changes.
Setting Motion:
From the output frequency display, press the key five times until the display shows the
parameter menu (PAr).
Press . The display will show A01.01.
Press two times to move the blinking digit to the right.
Press until the parameter A01.03 (Motion) appears.
Press .
