IMPULSE•G+ Mini Advanced Instruction Manual – March 2014
4-6

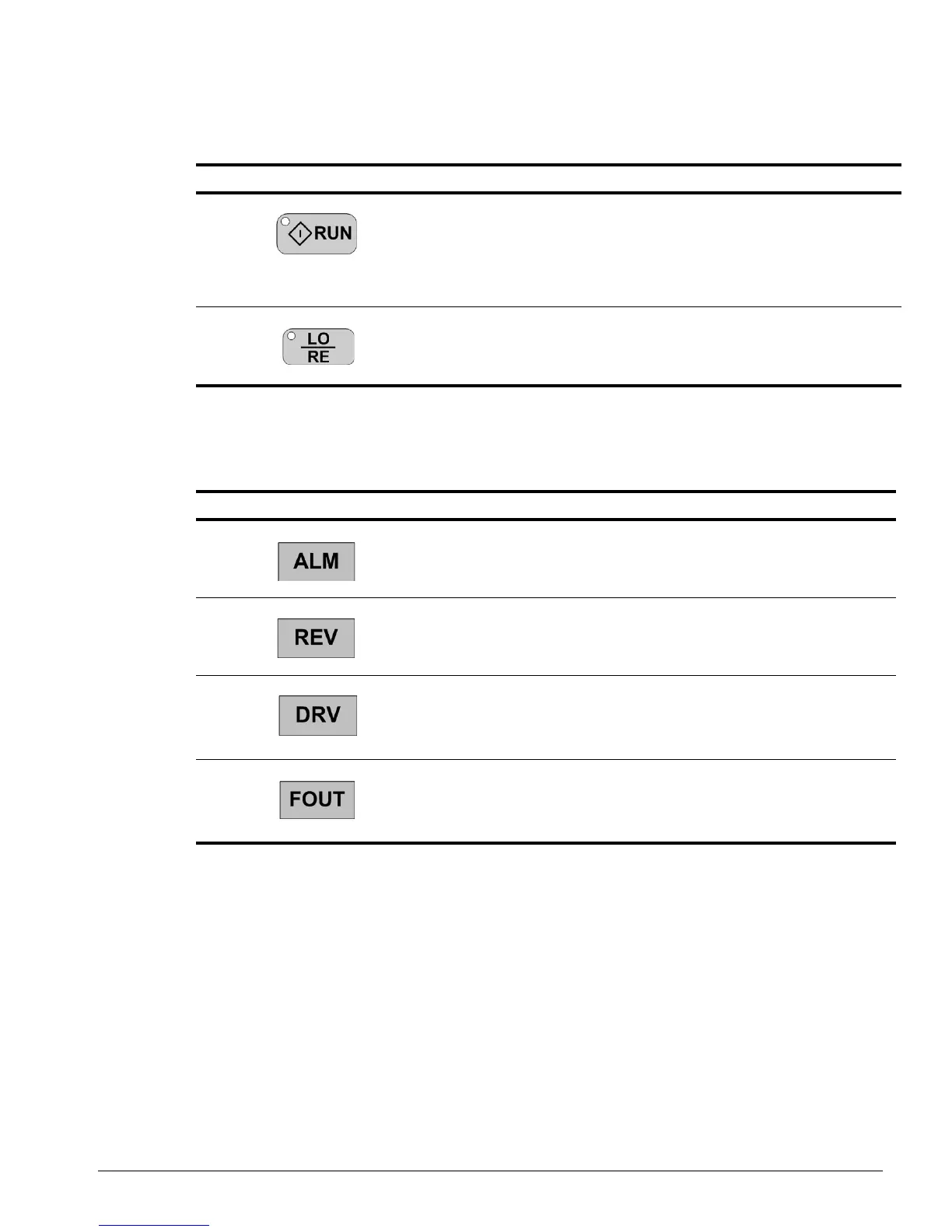

LO/RE LED and RUN LED Indications
Function LEDs
No. LED Lit Flashing Flashing Quickly Off
10 During run. During
deceleration to
stop.
When a run
command is input
and frequency
reference is 0.
During deceleration at a fast-
stop.
During stop by interlock
operation.
During stop.
11 When run
command is
selected from LED
operator
(LOCAL).
-- -- Run command is
selected from
device other than
LED operator
(REMOTE).
No. Display Lit Flashing Off
12 When the drive detects an
alarm or error
When an alarm occurs
OPE detected
When a fault or error occurs
during Auto-Tuning
Normal state (no fault or
alarm)
13 When the REVERSE
command is given
-- When the FORWARD
command is given
14 Drive Ready
Auto-Tuning
-- Programming Mode
15 Displays output frequency
(Hz)
-- --
