103
A
FRAME AND RUNNING GEAR
DISASSEMBLY
11/06
PASSWORD 250 i.e. 5
V2
D
B
C
D
135 ± 15%
V2
45 ± 15%

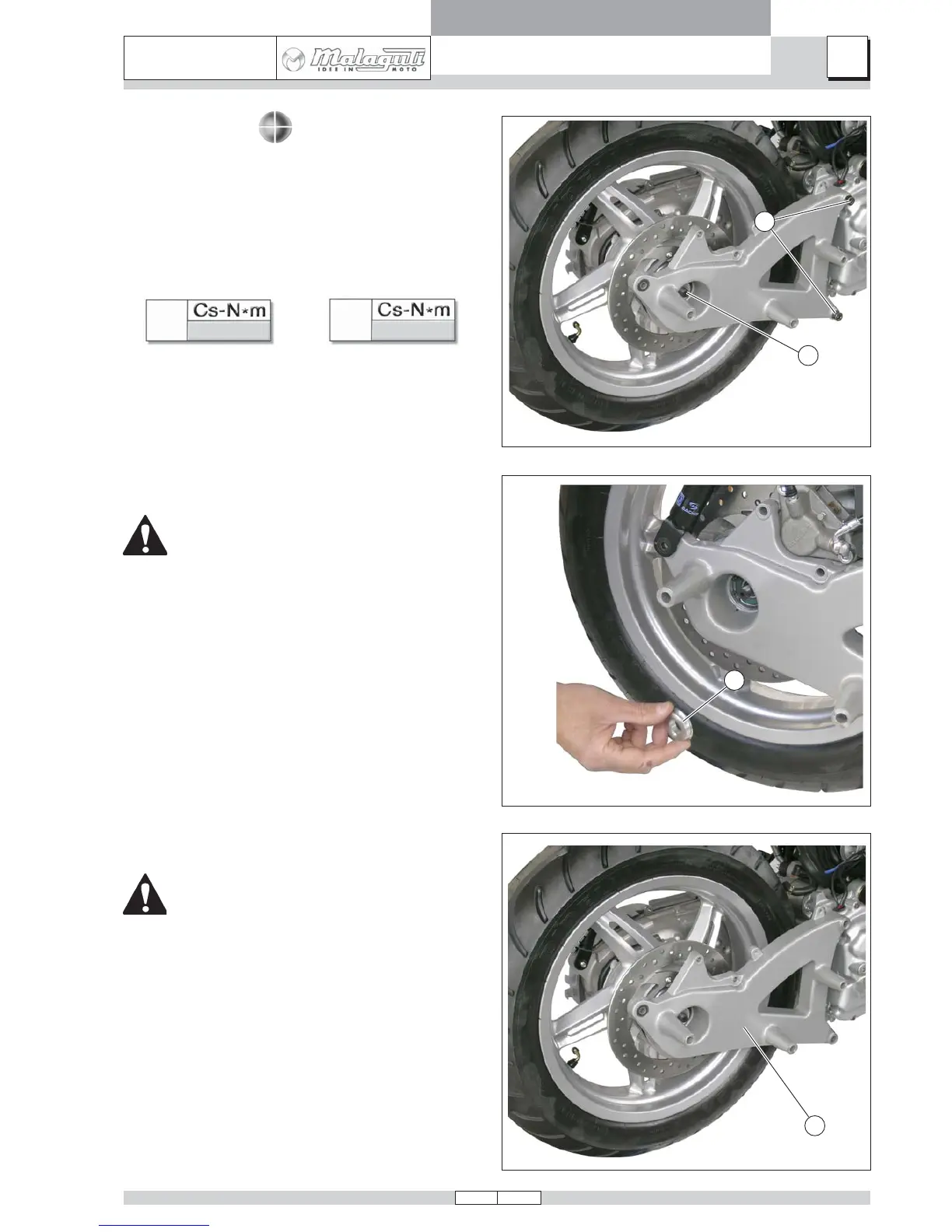

REAR WHEEL
• (Remove silencer).
• (Remove right-hand rear shock-absorber).
• (Remove mudguard).
• (Remove rear brake caliper).
• Undo nut (D) with washer and screws (V2).
• Remove spacer (B) from the wheel spindle.
When refitting the wheel spacer (B) must be
positioned with the largest diameter side
towards the wheel bearing, as shown in the
photo.
• Remove swingarm (C).
There is a spacer behind the swingarm sim-
ilar to the spacer IN FRONT of the arm; the
spacer must be refitted with the smallest di-
ameter side facing the arm. See also follow-
ing pages.
