GETTING TO KNOW YOUR SCOOTER
TECHNICAL DATA
MALAGUTI SpA reserves the right to modify technical data at any time without prior notice.

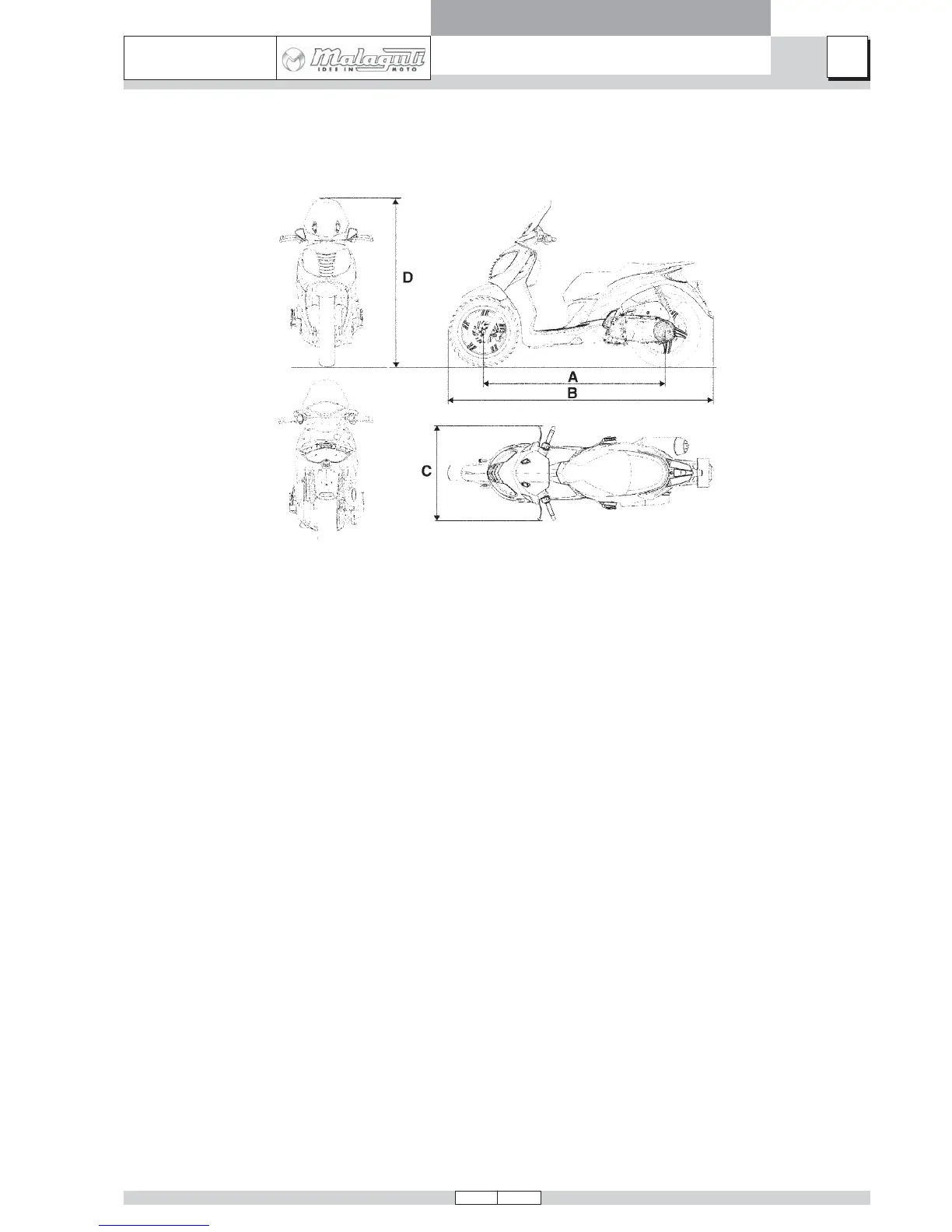

DIMENSIONS
wheel base (A), m ................................................ 1,484
max. length (B), m ................................................ 2,170
max. width (C), m ................................................. 0,760
max. height (D), m ................................................ 1,310
kerbside weight, kg.................................................. 170
max. load with rider, pillion and luggage, kg ............ 180
CAPACITIES
engine oil, cc ........................................................ 1400*
transmission oil, cc ................................................. 250*
fuel tank (reserve), l ........................................9,2* (3,5*)
* Guideline value
ENGINE: single cylinder, 2 valves - 4-stroke
type .............................................MINARELLI type 5MS
n° of cylinders.............................................................. 1
bore x stroke, mm ....................................... Ø 69 x 66.8
displacement, cm
3
............................................... 249,78
compression ratio ...........................................10±0,4 : 1
cooling ................................................................... liquid
starting system .......................................electric starter
lubrication system .......................................... wet sump
SPARK PLUG
type .......................................................NGK DPR8EA9
TRANSMISSION
Primary: automatic speed variator with V-belt.
Final: gearbox.
Automatic centrifugal clutch
FUEL SYSTEM
Injection
Fuel: unleaded petrol.
IGNITION
MORIC control unit (5HW)
MORIC start-up coil (2JN)
BRAKES
Front brake:Ø 270 mm disc - hydraulic caliper with double
Ø 25 mm piston.
Rear brake: Ø 240 mm disc - hydraulic caliper with Ø 30
mm piston.
FRAME
High strength steel tubing.
SUSPENSION
Front: Hydraulic fork Ø 35 mm - travel: 110 mm
Rear: Swinging engine with double dual chamber
hydraulic shock absorber - travel: 110 mm
BATTERY
Type: 12V, 12Ah, sealed unit.
TYRES
Front: —— 110/70 - 16 60P (tubeless)
Rear: — 140/70 - 16 65P (tubeless)
It is possible to use tyres with load and speed indexes that
are higher than or identical to those indicated. It is howev-
er necessary for speed indexes to be identical for both
tyres.
