FRAME AND RUNNING GEAR
DISASSEMBLY
5
V2

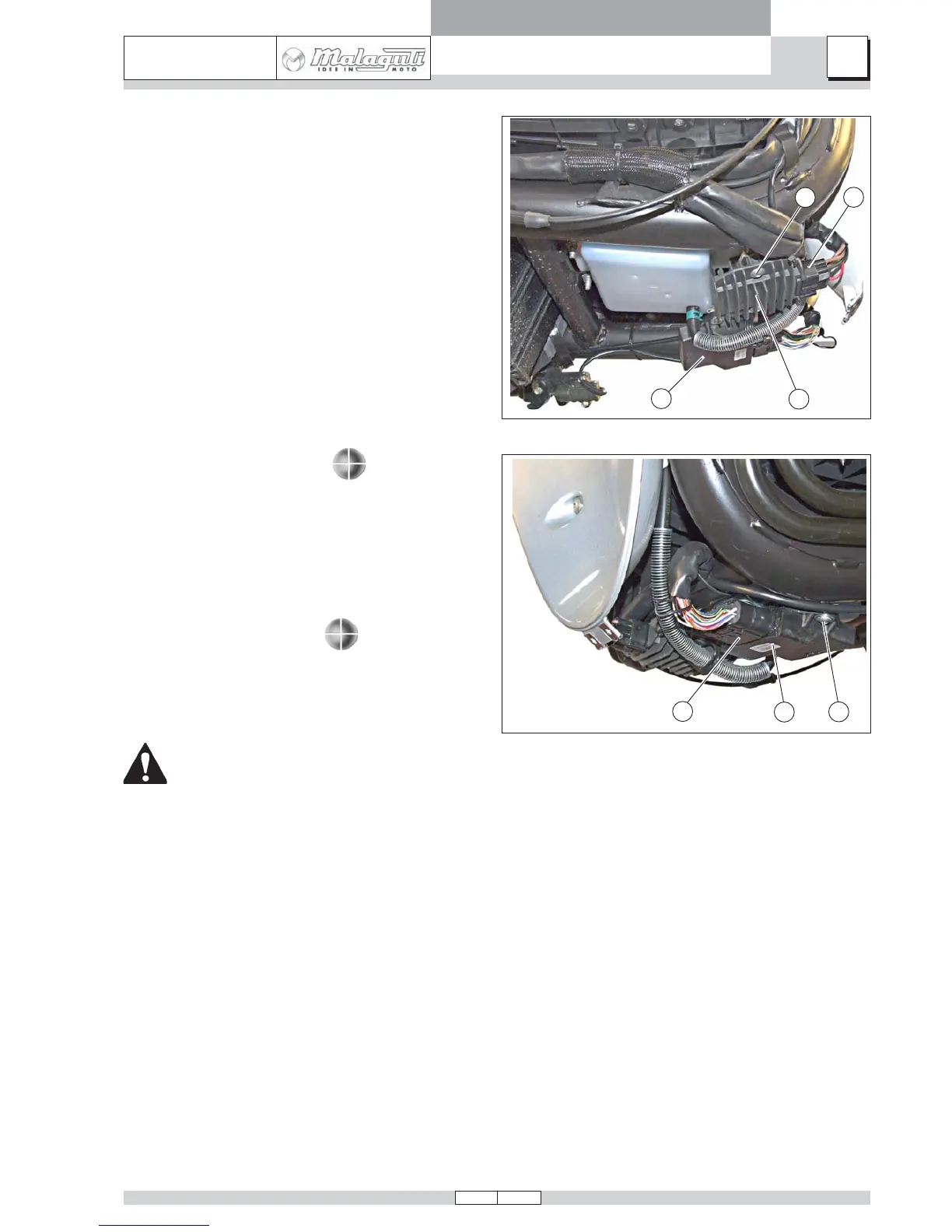

Removing both sub panels provides access to the
following components:
• Voltage regulator (D)
• “CDI” control unit (E)
VOLTAGE REGULATOR
• Disconnect connector (A) by pressing the suitable tab.
• Undo screws (V2) and remove regulator (D).
“CDI” CONTROL UNIT
• Disconnect connector (B) by pressing the suitable tab.
• Undo screws (V2) and remove “CDI” control unit (E).
To unscrew the screws (V2) you must use a
fool-proofing “TORX” wrench (T. 25)
E
B
E
D
V2 A
