59
11/06
A
PASSWORD 250 i.e.
FRAME AND RUNNING GEAR
DISASSEMBLY
5
40 ± 15%
A
V
B
A
V
20 ± 15%
A

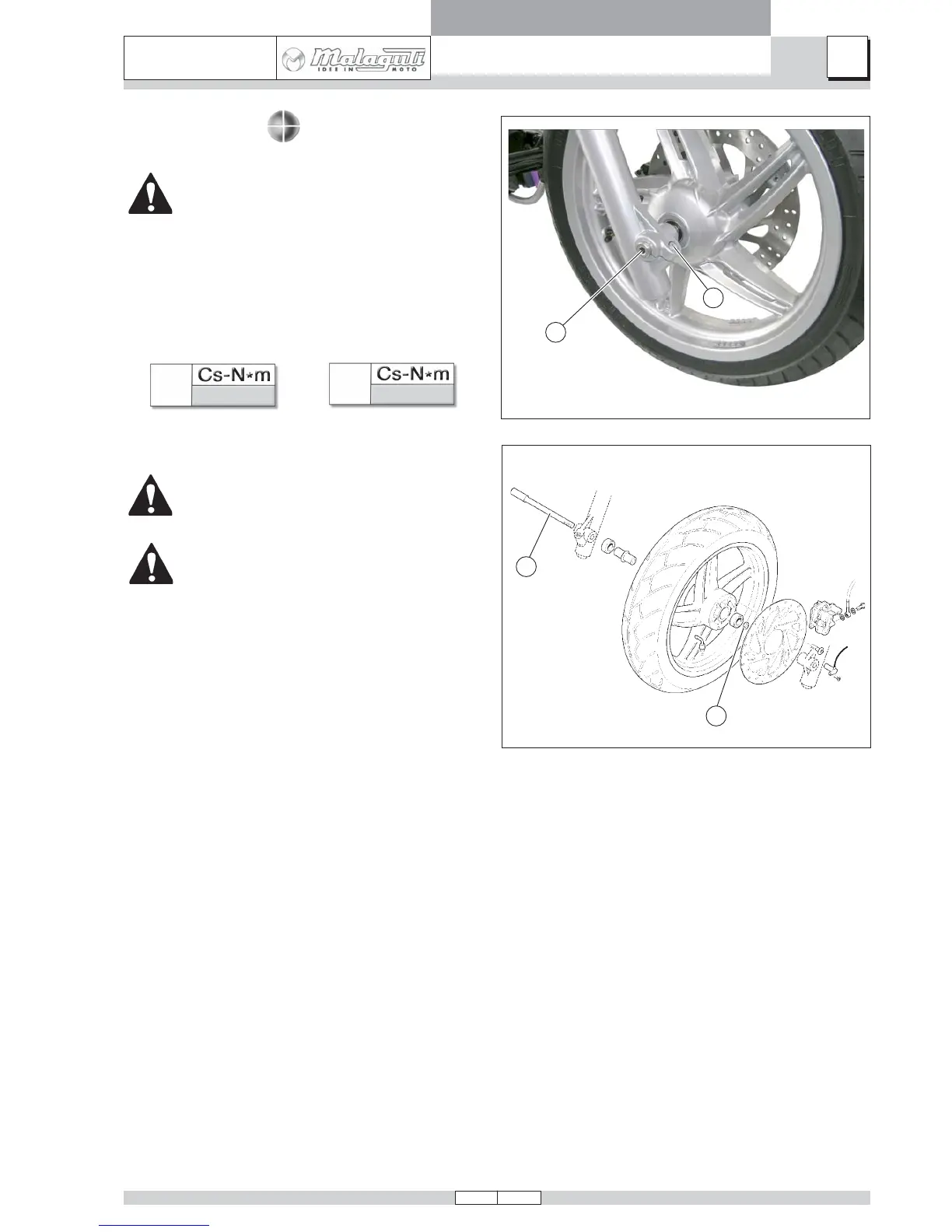

FRONT WHEEL
Before disassembly, support the frame at
the centre to prevent the scooter from fall-
ing.
• (Remove speedometer sensor).
• (Remove front brake caliper).
• Loosen screw (V).
• Unscrew and remove wheel spindle (A), paying atten-
tion to spacer (B).
• Remove wheel assembly.
Do not operate the brake lever after remov-
ing the wheel, since the pads would come
into contact with each other.
When refitting the wheel be sure to refit the
spacer and grease spindle (A).
