Malaguti Password 250 i.e. - Pillion Grab Handle

90
A
FRAME AND RUNNING GEAR
DISASSEMBLY
11/06
PASSWORD 250 i.e.5
V
43 ± 15%
V2
43 ± 15%

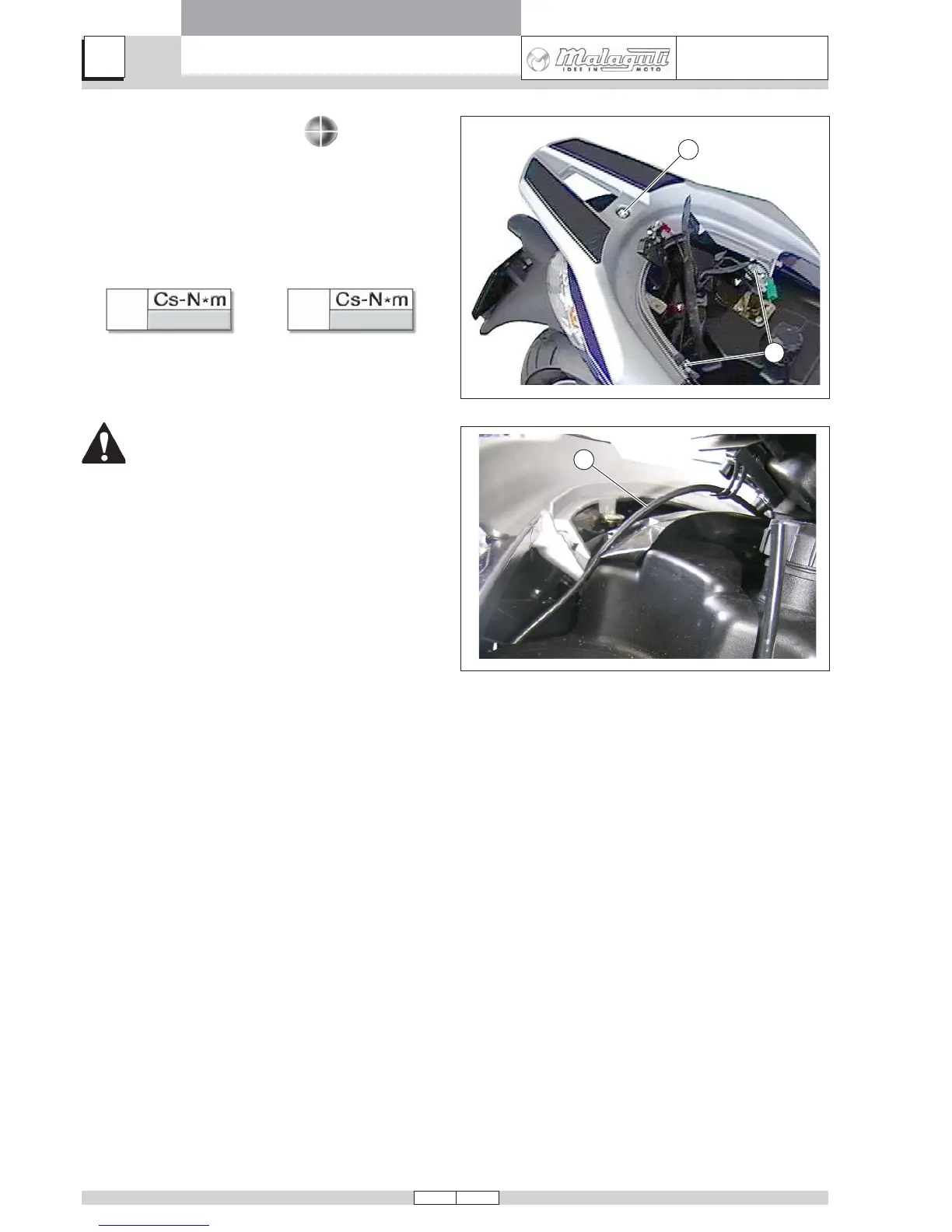

PILLION GRAB HANDLE
• (Remove seat).
• (Remove helmet compartment).
• (Remove seat lock).
• Undo screws (V2) and (V) and remove handle (A).
When refitting the grab handle, pay atten-
tion to seat lock cable (A), which must fol-
low the route indicated with respect to the
grab handle.
V2
V
A
