FRAME AND RUNNING GEAR
DISASSEMBLY
11/06
PASSWORD 250 i.e. 5
FOOTBOARD
• (Remove the battery compartment tunnel cover).
• (Remove the battery).
• (Remove the sub-panels).
• (Remove right/left half fairings).
• (Remove lower fairing).

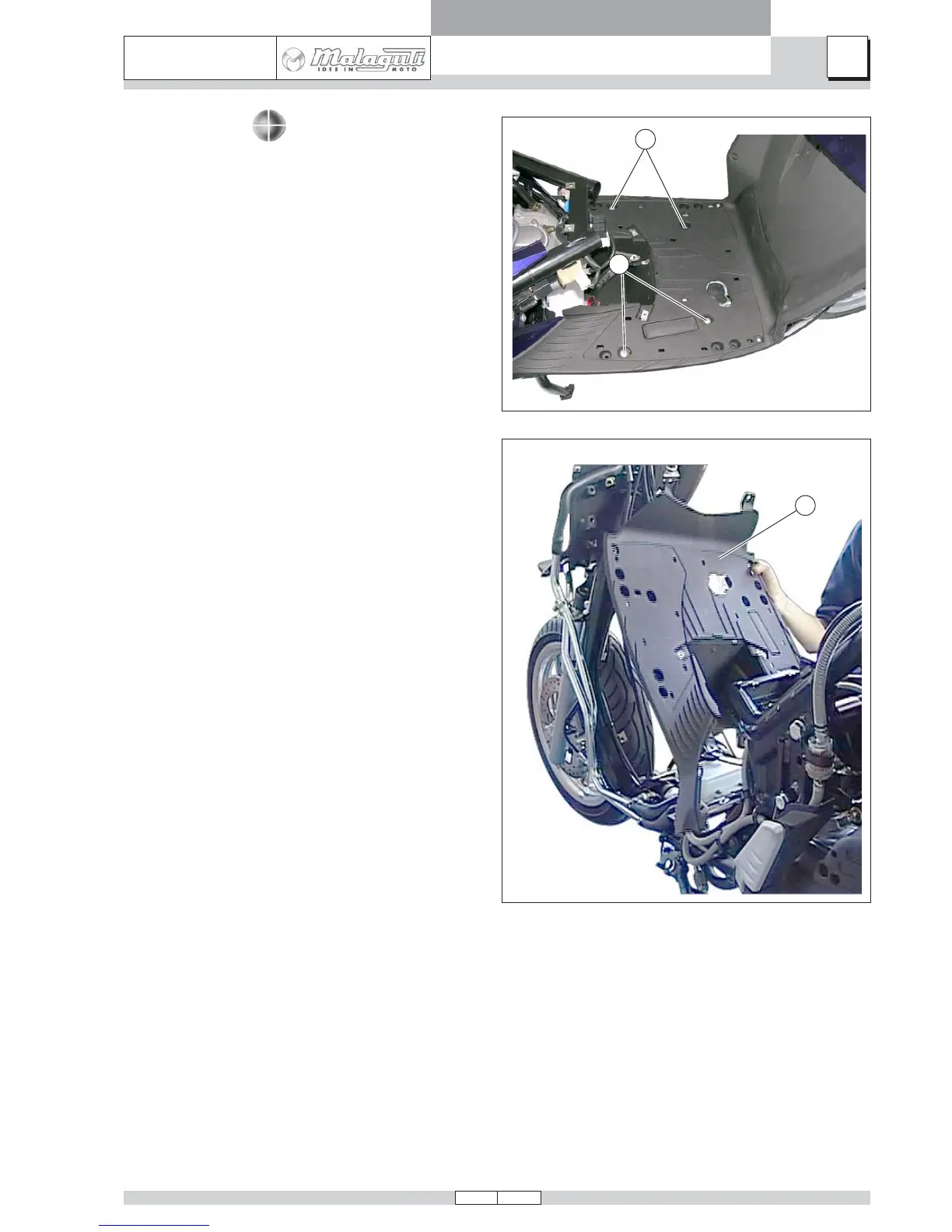

• Undo screws (V4).
• Rotate footboard (A) upwards and remove.
A
V4
V4
