A
FRAME AND RUNNING GEAR
DISASSEMBLY
116
PASSWORD 250 i.e.5
11/06

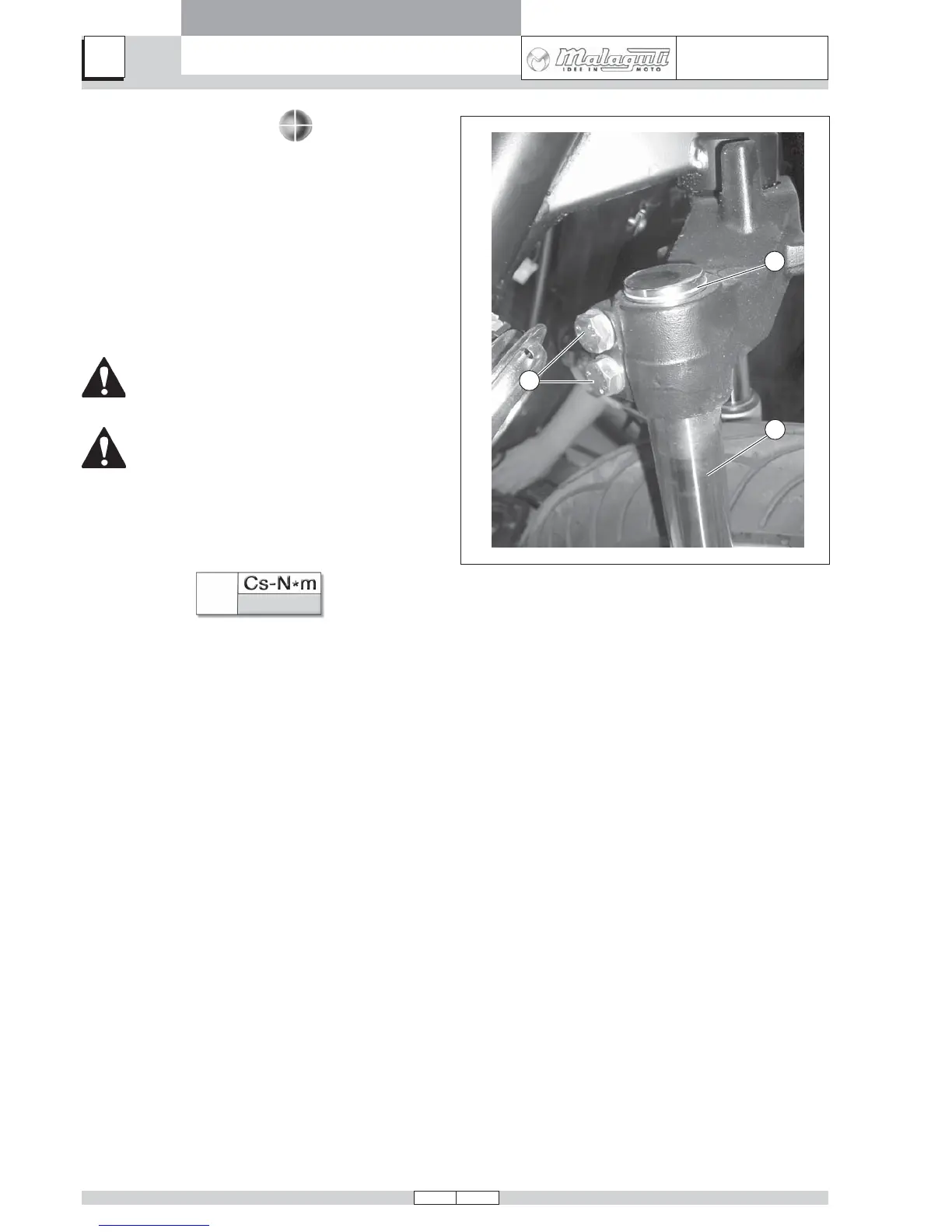

FRONT STANCHION
RIGHT
• (Remove mudguard).
• (Remove wheel).
LEFT
• (Remove mudguard).
• (Remove wheel).
• (Remove brake calliper).
• (Remove odometer pick-up).
Before proceeding with the disassembly
operation, prop up the centre of the frame
to prevent the scooter falling.
To proceed with the operation, position the
brake calliper and brake line BEHIND the
scooter frame.
• Remove circlip (A).
• Undo screws (V2).
• Remove stanchion tube (B) downwards by pulling and
twisting.
V2
30 ± 20%
NOTE The composition of the oil group of the fork
can be found in the Spare Parts Catalogue.
B
A
V2
