Malaguti Password 250 i.e. - Lambda Probe and Discharge Collector

99
A
FRAME AND RUNNING GEAR
DISASSEMBLY
11/06
PASSWORD 250 i.e. 5

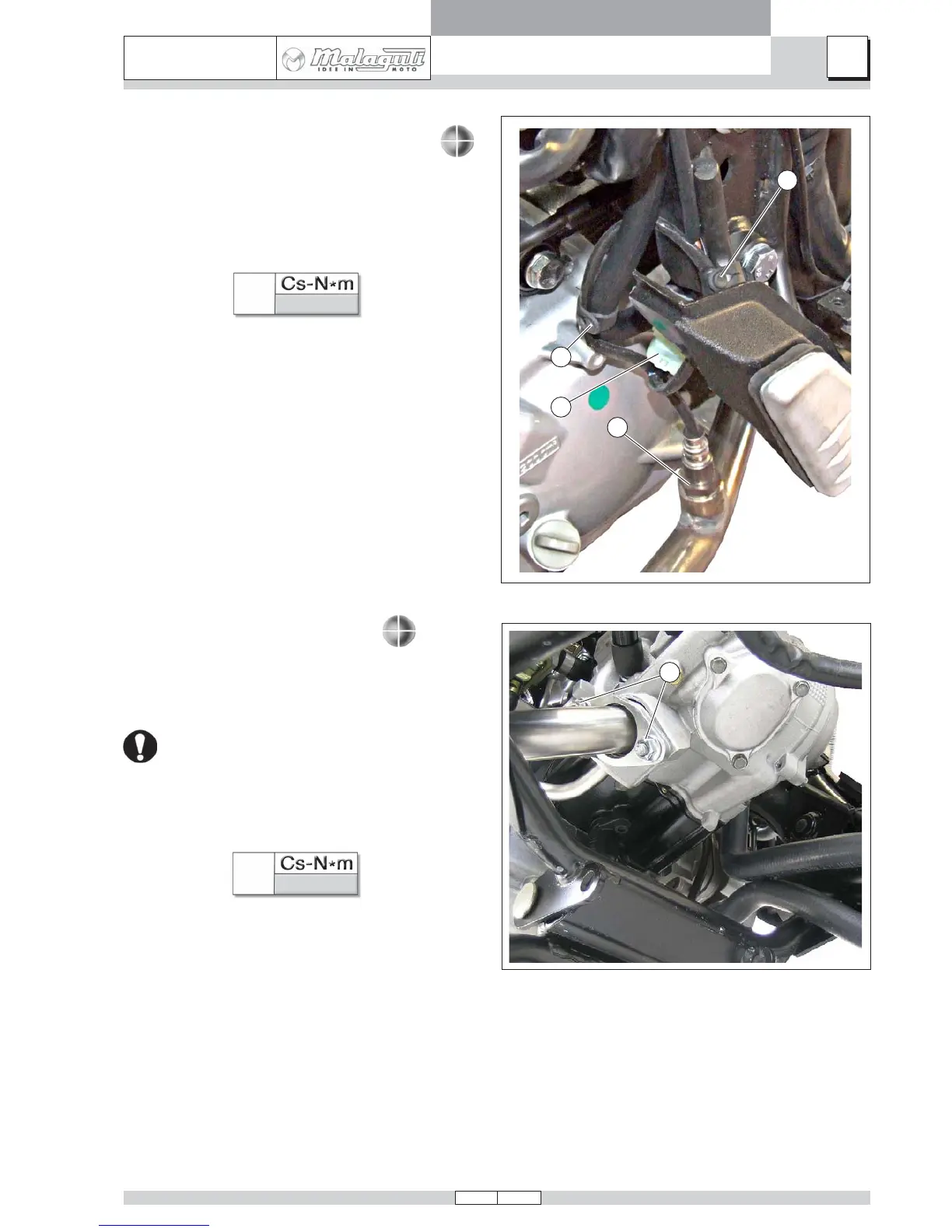

LAMBDA PROBE AND DISCHARGE
COLLECTOR
• Open clamps (A - B).
• Disconnect the connector (C).
• Unscrew the Lambda probe (D).
D
45 ± 10%
DISCHARGE COLLECTORS
• Unscrew the nuts (D2) which fix the collectors.
• Remove the discharge collector.
During reassembling, replace the gasket on
the engine side and the gasket on the silencer
side with new, original ones. The parts to be
replaced can be found in the Spare Parts
Catalogue.
D2
30 ± 10%
B
D
C
A
D2
