85
A
FRAME AND RUNNING GEAR
DISASSEMBLY
11/06
PASSWORD 250 i.e. 5
V2
2 ± 20%
V4
10 ± 20%

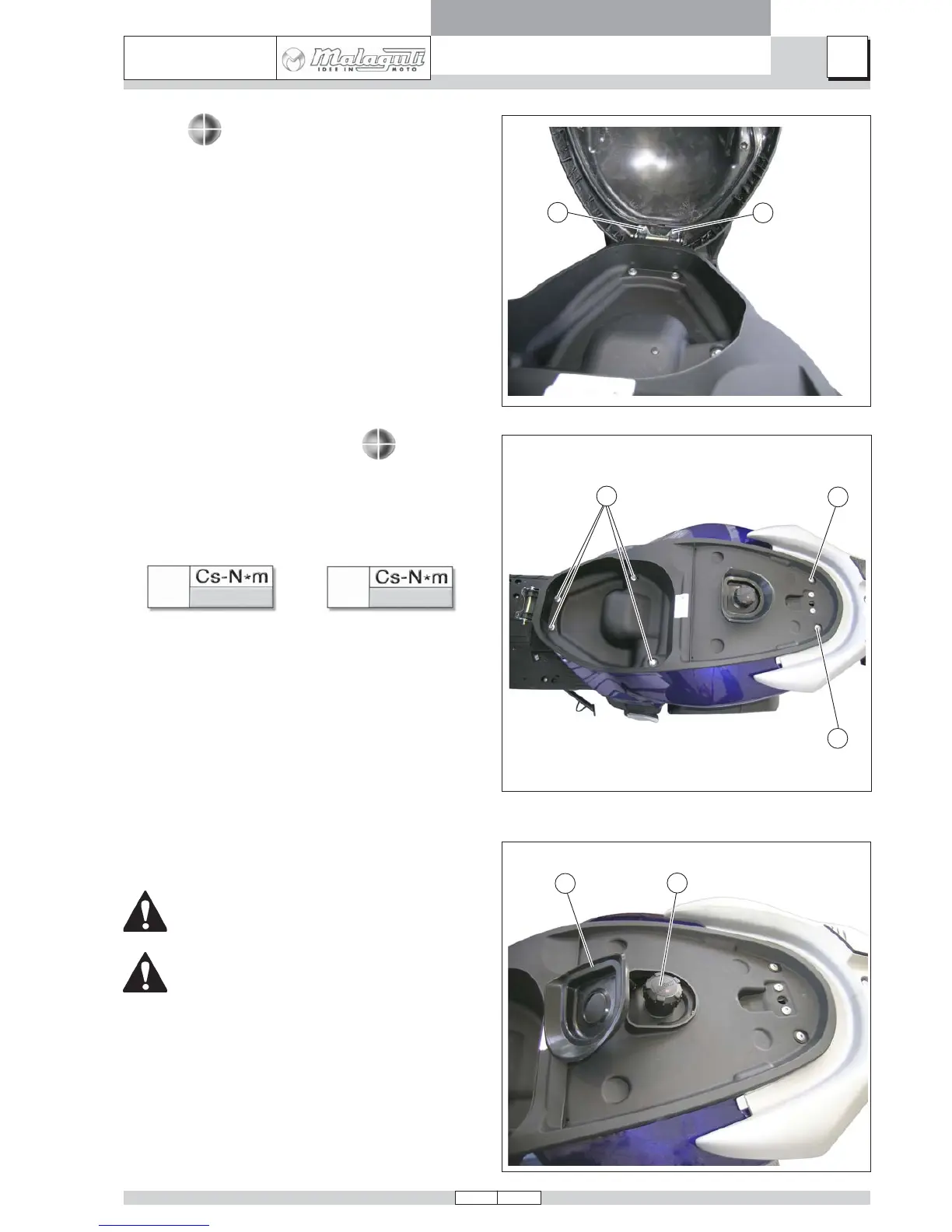

SEAT
• Release the seat lock with the key and tip it to its open
position.
• Unscrew nuts (D2) and remove the seat, resting it on
a supporting surface with the upholstery upwards.
HELMET COMPARTMENT
• (Remove seat).
• Undo screws (V2) and (V4).
• Remove fuel tank cap (B), remove gasket (C), discon-
necting it from the drip hose, then refit the cap.
Screw the fuel tank cap back on immediate-
ly after removing the gasket.
The helmet compartment is still attached to
the scooter via the seat lock transmission
cable.
D2
D2
V2
V2
V4
C
B
