FRAME AND RUNNING GEAR
DISASSEMBLY
5
64
11/06

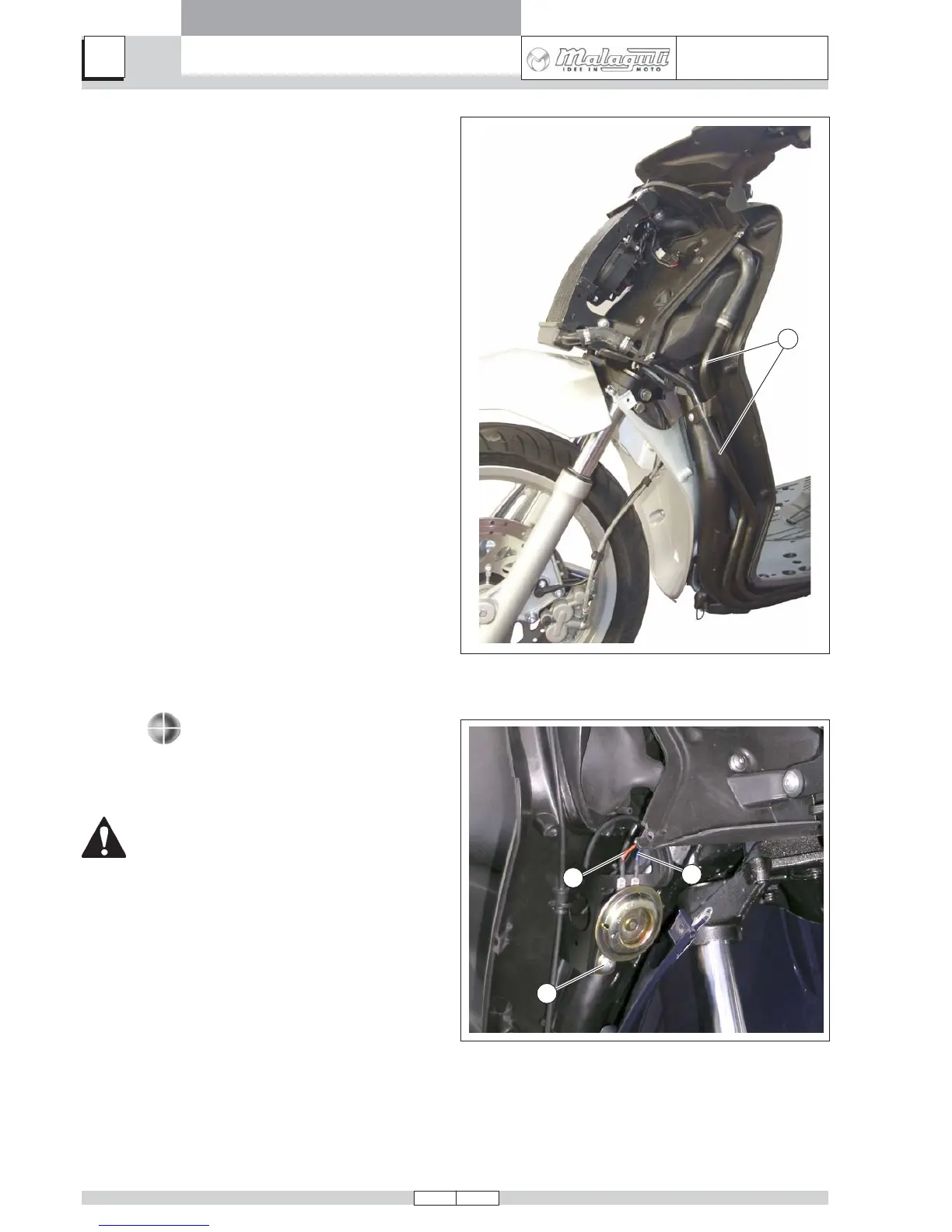

Removing the left-half shield provides access to the fol-
lowing components:
• Coolant hoses (F).
HORN
• (Remove right-hand half shield).
• Undo screw (V) and disconnect the cables.
For subsequent reassembly, connect BLUE
wire (A) to the horn INTERNAL terminal and
ORANGE wire (B) to the EXTERNAL termi-
nal.
F
V
B
A
