FUSES
• The electrical equipment includes eight fuses protect-
ing the main components against faults. The fuses are
located in the glove compartment.

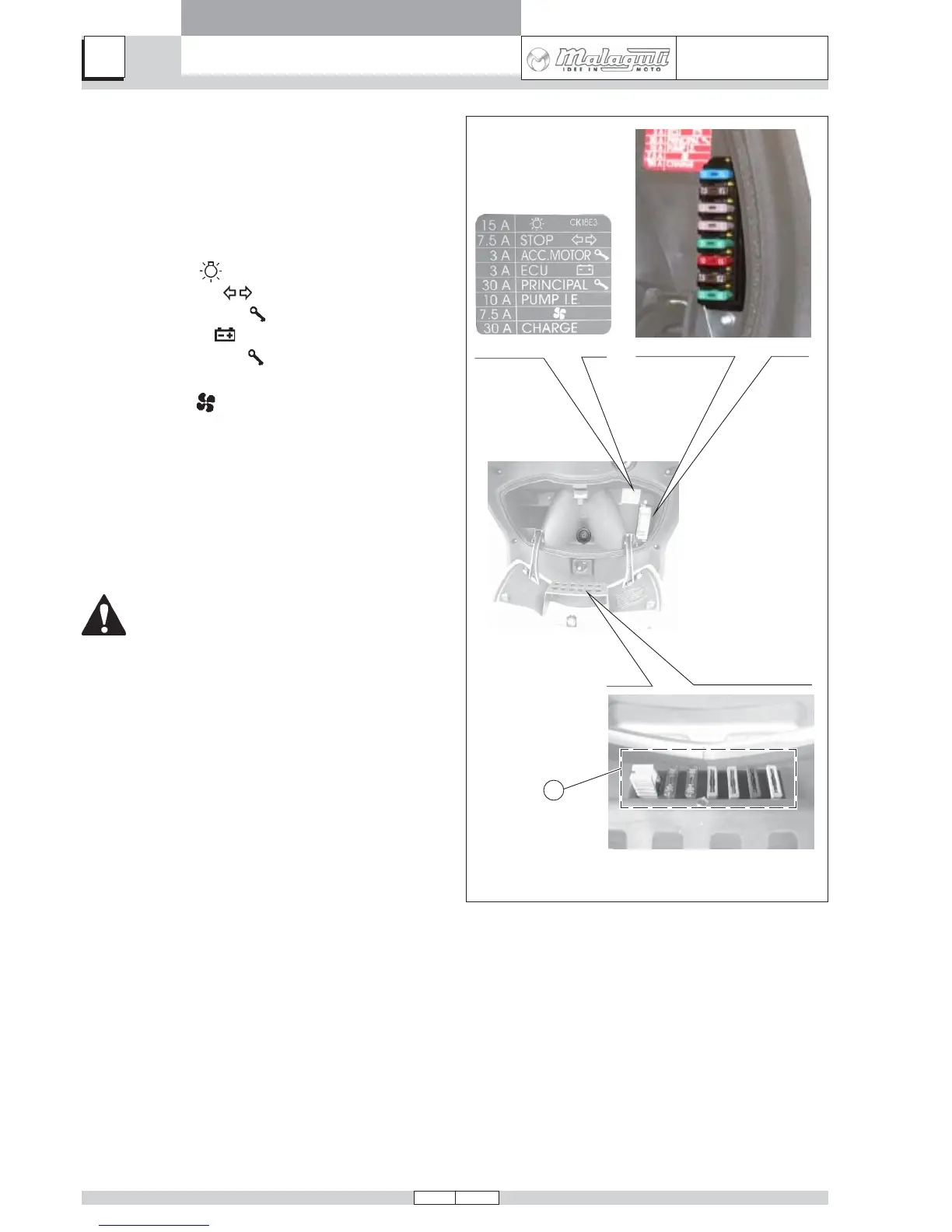

Fuses:
A) 15 A Lights
B) 7.5 A STOP Brake light+Indicators
C) 3 A ACC. MOTOR Engine accessories
D) 3 A ECU Control unit
E) 30 A PRINCIPAL Main fuse
F) 10 A PUMP I.E. Fuel pump
G) 7.5 A Fan
H) 30 A CHARGE Battery charge protection
• To change a fuse, simply open the lower fairing cover
and remove the blown fuse, replacing it with an identi-
cally rated fuse.
Several spare fuses (A) are provided on the inside of
the cover. Check that the fuse you intend to fit is identi-
cally rated to the one you are replacing.
Do not replace fuses with others of higher
rating. This action could result in serious
damage to the electrical system or cause a
fire on the scooter in the presence of short
circuits.
