FRAME AND RUNNING GEAR
DISASSEMBLY
11/06
PASSWORD 250 i.e. 5
ACCESSIBILITY

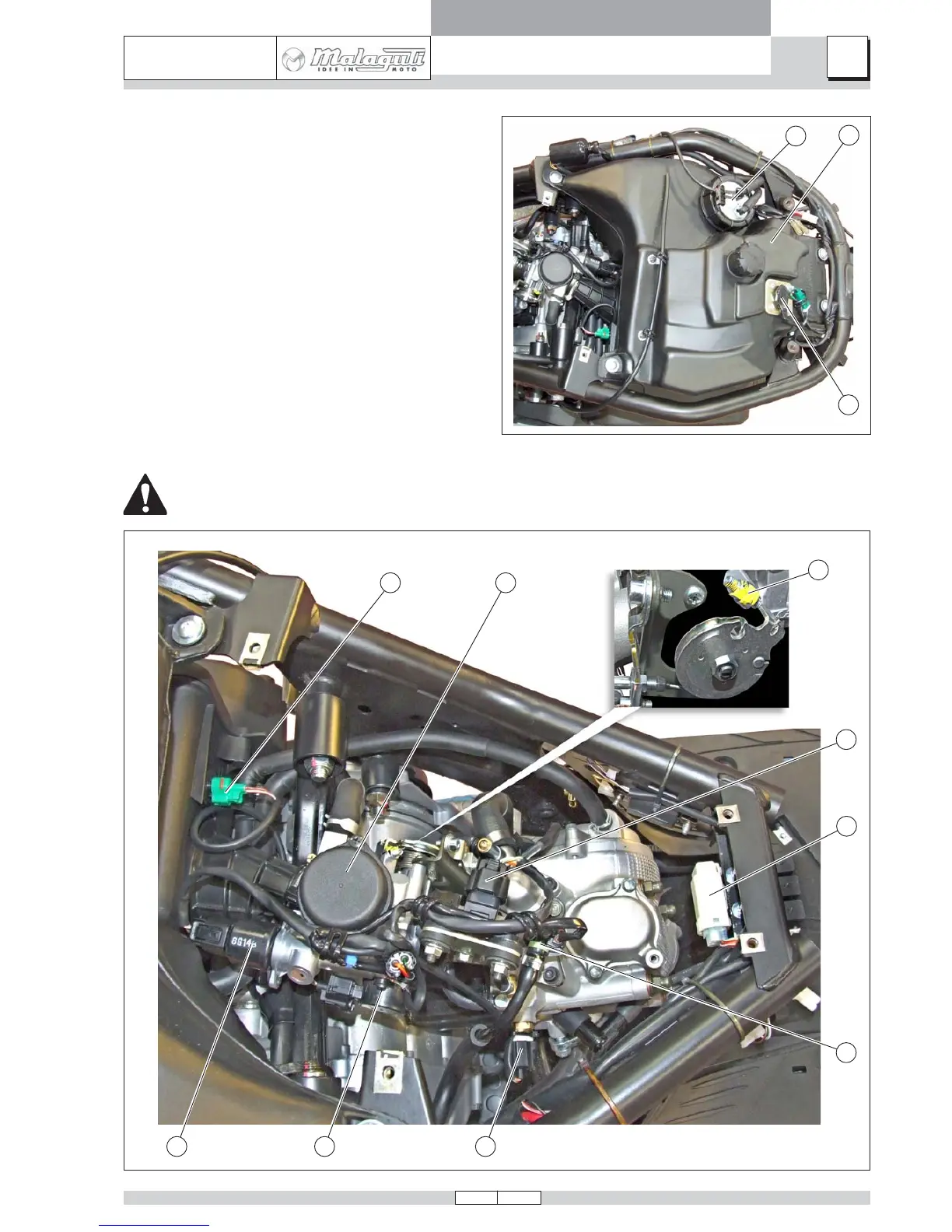

Remove the helmet storage container to gain access to
the components below:
A) Fuel tank
B) Fuel probe
C) Fuel pump
D) Suction air temperature sensor connector
E) Engine stepper
F) “TPS” sensor (butterfly valve position)
G) Suction air pressure sensor
H) Injector
I) Water temperature sensor
L) Roll-over protection sensor
M) Depression valve cap, throttle body
The regulation screw (N) on the throttle body
must never be tampered with, under no
conditions.
D M
N
L
G
H
E F I
A
C
B
