FRAME AND RUNNING GEAR
DISASSEMBLY
11/06
PASSWORD 250 i.e.5
V2
V
25 ± 15%
SILENCER

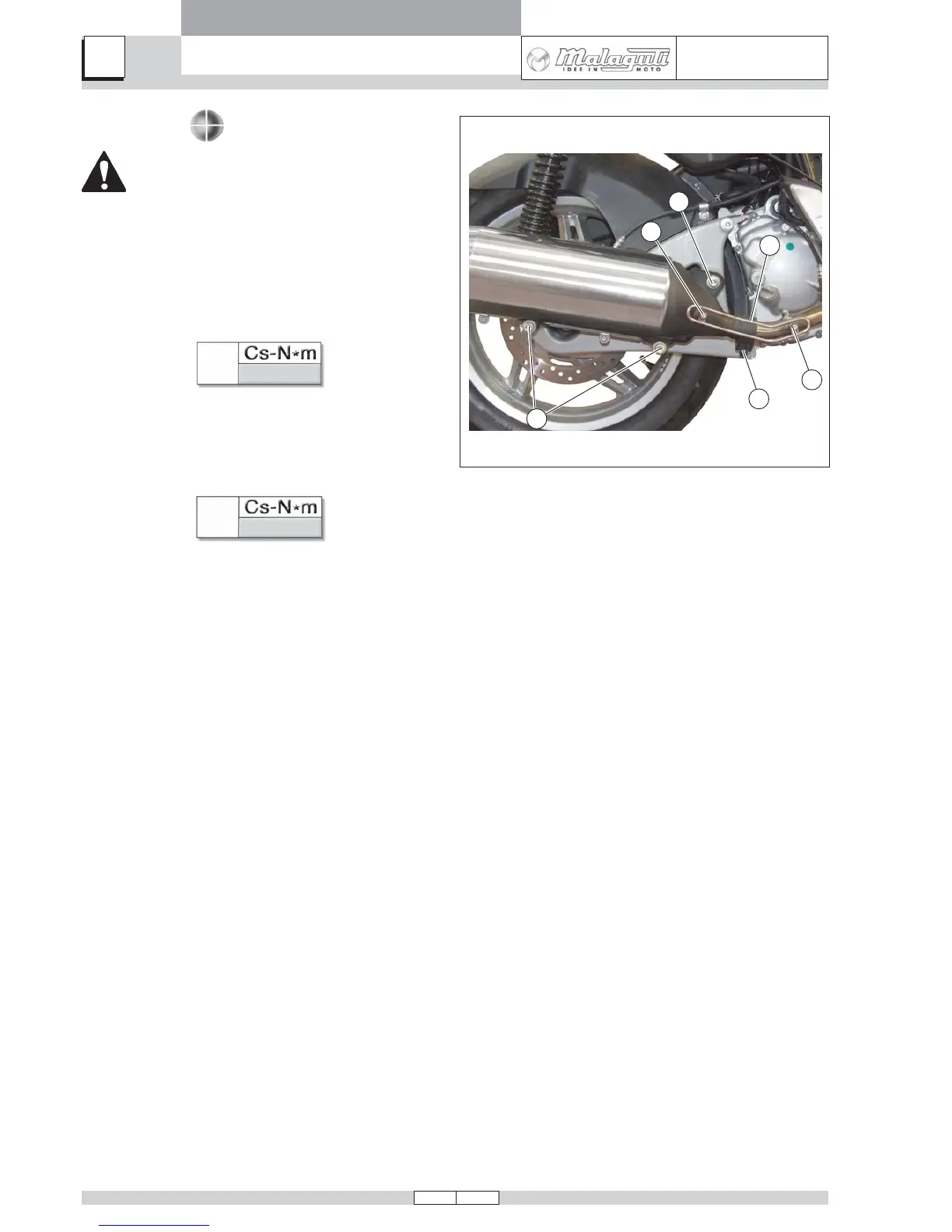

Before working on the silencer and the ex-
haust manifold wait until all the components
have cooled down and always wear suitable
protective gloves.
• Undo the screws (V2a) and remove the protection (G).
• Loosen the clamp screw (F).
• Undo screws (V2).
• Undo the screw (V) while holding the silencer; remove
it from the scooter.
NOTE To identify all components please refer to the
Spare Parts Catalogue (Table I).
