94
A
FRAME AND RUNNING GEAR
DISASSEMBLY
11/06
PASSWORD 250 i.e.5

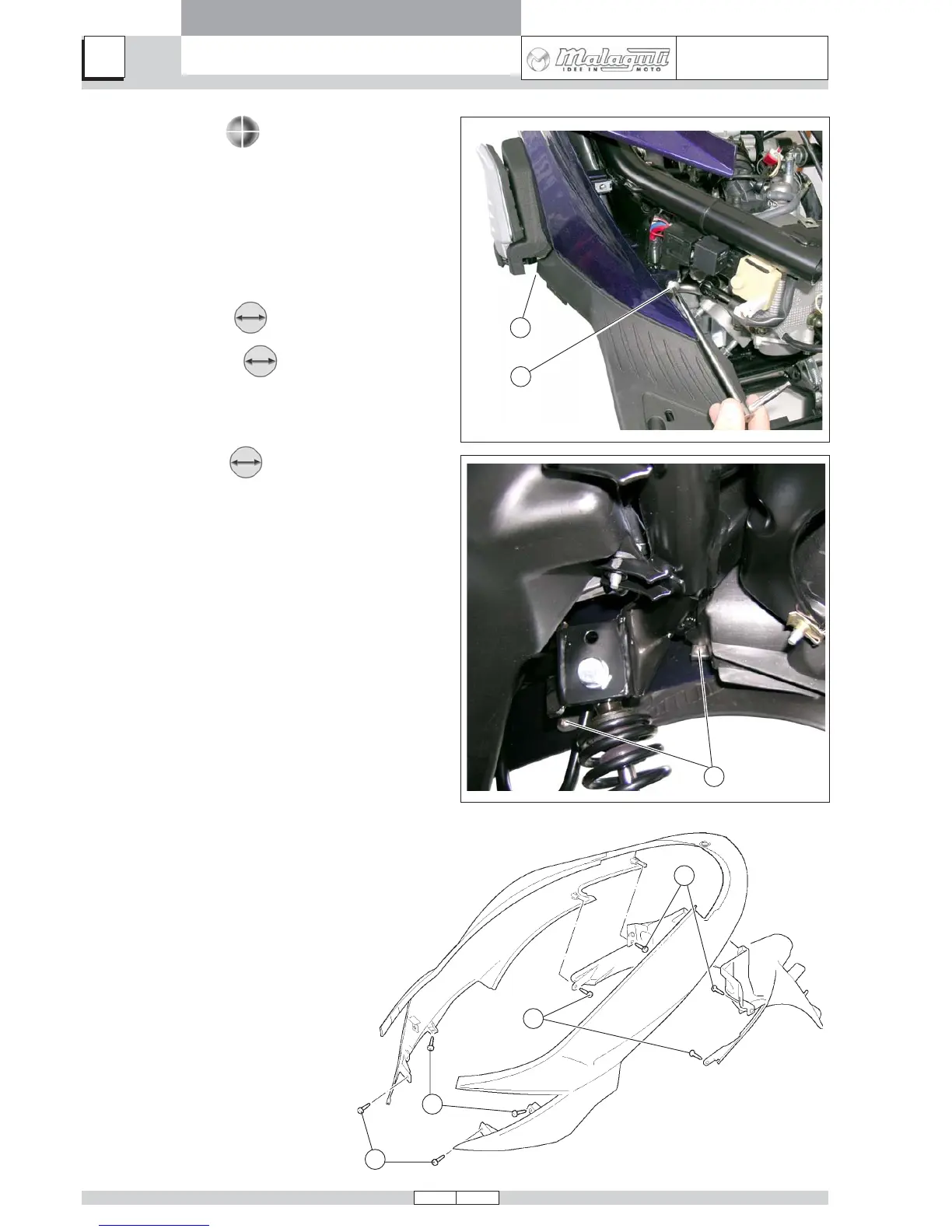

REAR FAIRING
• (Remove seat).
• (Remove helmet compartment).
• (Remove seat lock).
• (Remove taillight).
• (Remove pillion grab handle).
• (Remove battery compartment tunnel).
• Undo screws (V2).
• Undo screws (V2A).
• Undo screws (V4).
NOTE To remove screws (V4) use a screwdriver with
a 90° angled blade.
• Slide out the fairing towards the rear of the scooter.
The figure shows the rear fairing with an indication of ALL
the screws to be removed.
V4
V4
V2
V2
V4
V2
V2a
