Malaguti Password 250 i.e. - Throttle Body and Aspiration Connector

88
A
FRAME AND RUNNING GEAR
DISASSEMBLY
11/06
PASSWORD 250 i.e.5

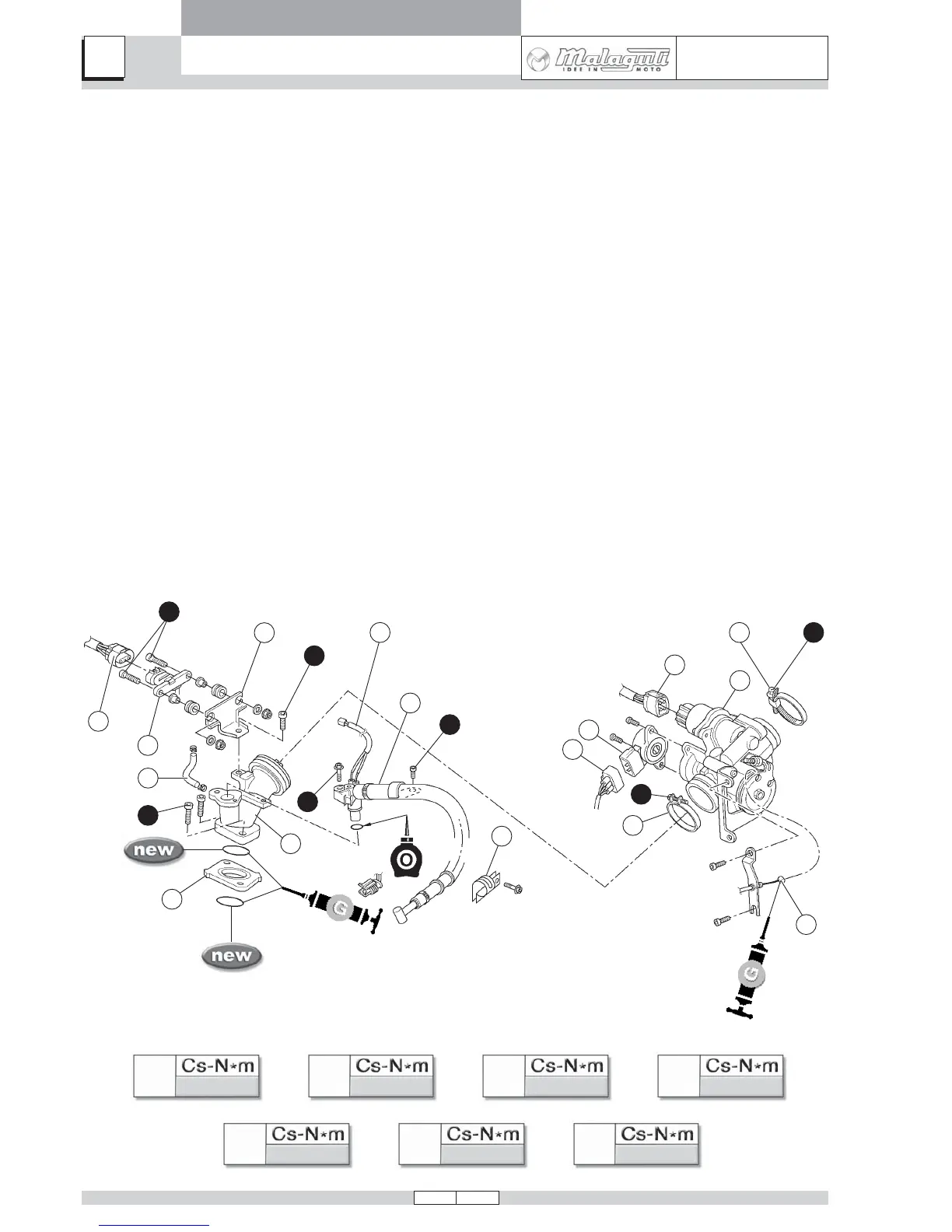

THROTTLE BODY AND ASPIRATION CONNECTOR
NOTE For access to the throttle body, remove the saddle and the helmet storage space.
1) Suction air pressure sensor tube
2) Suction air pressure sensor connector
3) Suction air pressure sensor
4) Suction air pressure sensor shaft
5) Engine stepper connector (step-by-step scooter)
6) “TPS” sensor connector
7) “TPS” sensor (butterfly valve position)
8) Accelerator cable
9) Air filter box clamp
10) Throttle body clamp
11) Throttle body
12) Injector connector
13) Fuel pipe support
14) Injection unit
15) Suction collector
16) Suction collector joint
12
14
11
9
2
4
3
1
8
5
7
6
10
13
15
16
Vb
10
Va
10
Vd
10
Vc
12
Ve
1.5
V
Vb
Vc
Vd
Ve
Vf
Va
V
8
Vf
3
