82
A
FRAME AND RUNNING GEAR
DISASSEMBLY
11/06
PASSWORD 250 i.e.5

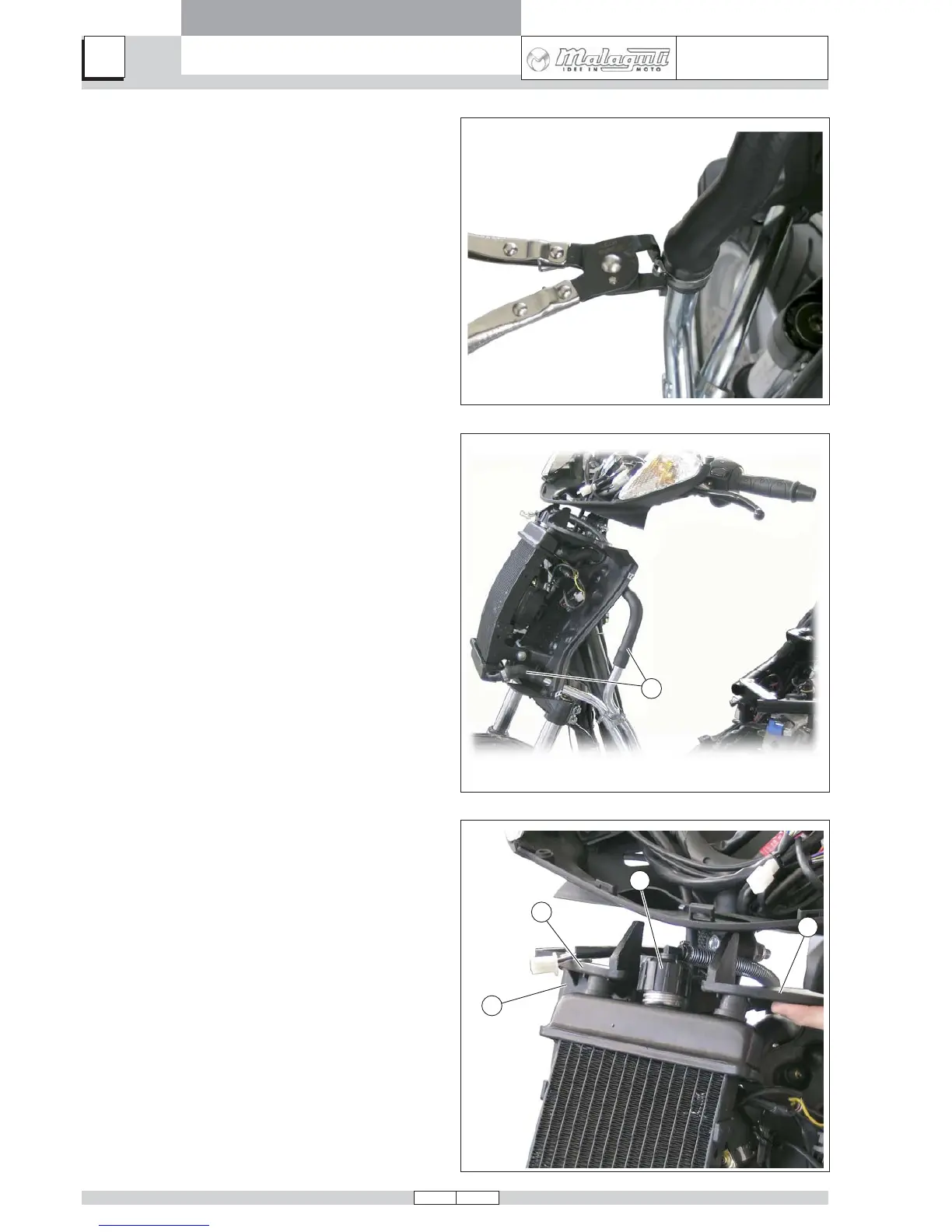

NOTE Use pliers (Beta 1472 FS) to remove the
clamps.
• Detach rubber hoses (D) from metal pipes.
NOTE To facilitate this operation prise the hose by
inserting a screwdriver under it while simul-
taneously pulling it.
• Remove radiator cap (E) and lift the edges (F) of radia-
tor support partition (G) to disengage the radiator at-
tachment points.
• Remove the radiator by sliding it downwards.
D
F
E
F
G
