4-2
Remove the control panel (see page 4-1)
The violet wire with a white tracer has a
blank plug with no wire connected to it. This
wire is used for export models only.
To raise the water level in the rinse cycle
remove the blank plug from the connector.
Disconnect the violet wire with the yel-
low stripe that connects to the pink wire.
Attach the violet wire with the
white stripe to the pink wire.
Place the blank plug onto the vio-
let wire with the yellow stripe.
1.
2.
3.
•
•
•

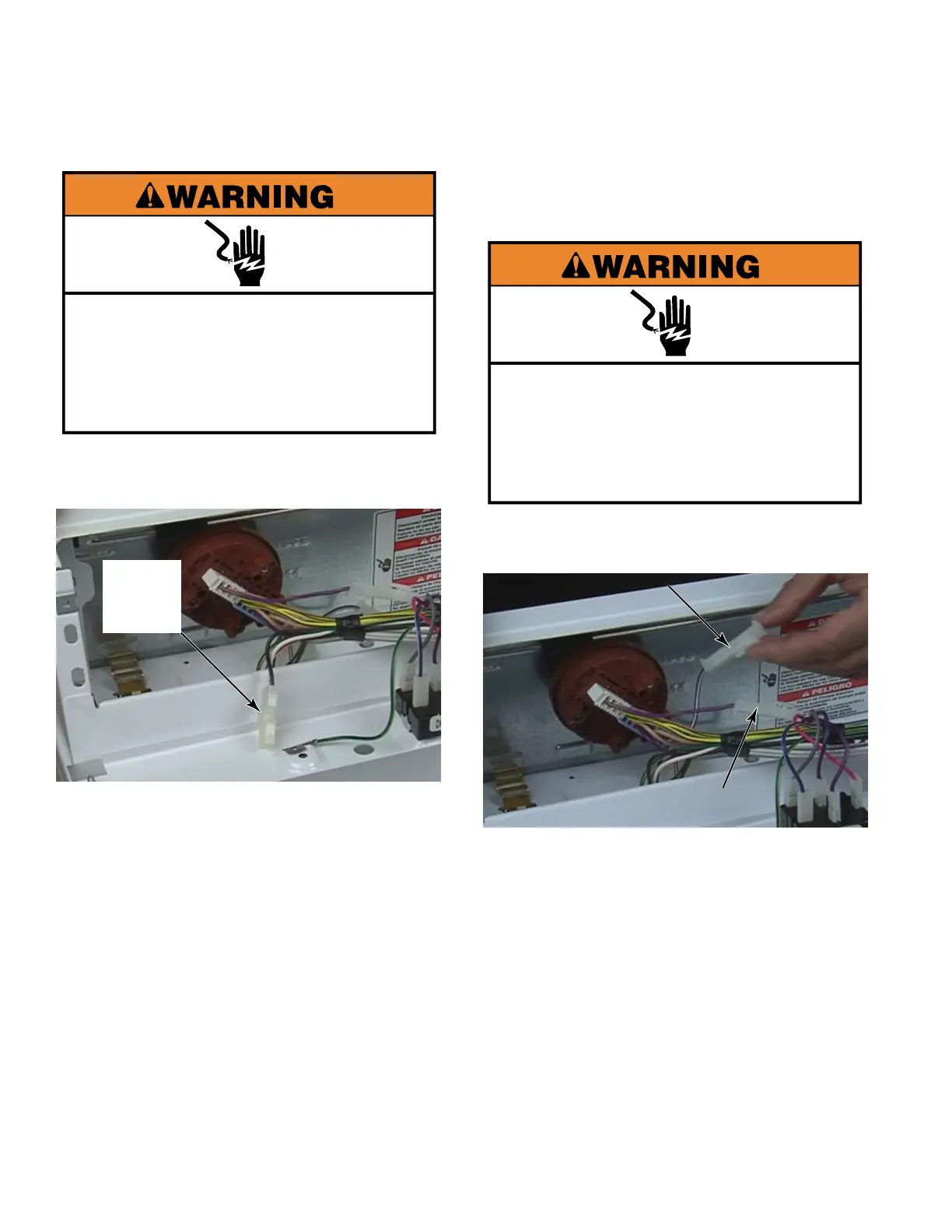

Remove the control panel (see page 4-1)
The two-wire connector in the console that
has a blank locking plug on it can be used
as a power source for a controlling device or
a monitoring device.
1.
2.
POWER SOURCE
PLUG - MN MODEL
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
EXPORT MODEL
RINSE LEVEL WIRE
HARNESS OPTION -
MN AND CS MODELS
Power
Source
Plug
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
