Maytag MAT14CS - Remove Escutcheon; Remove Display Lens

4-7
Remove the control panel (see page 4-1).
Remove the escutcheon (see page 4-7).
Pull the escutcheon away from the front of
the control panel and the lens will be pulled
from the back of the escutcheon.
1.
2.
3.

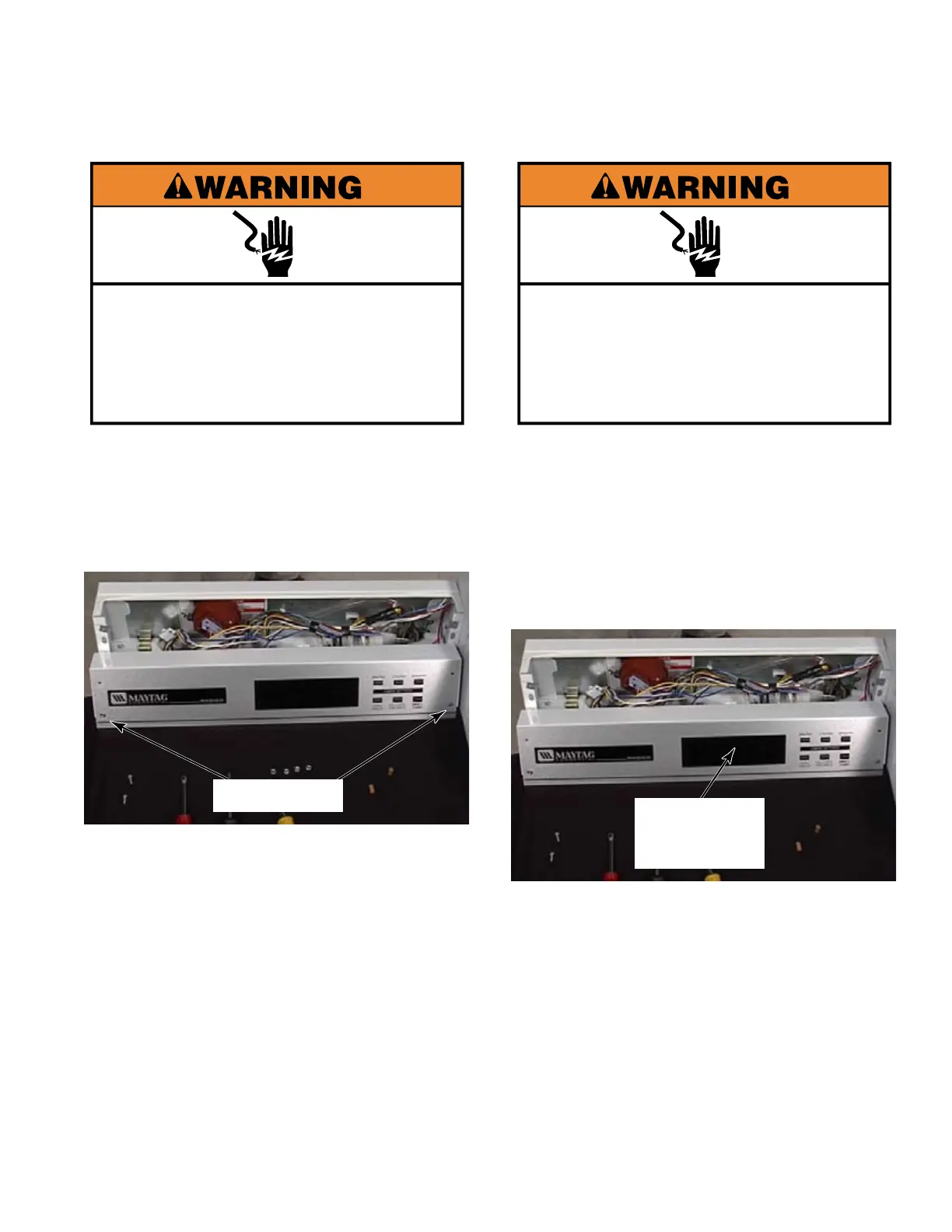

REMOVE ESCUTCHEON REMOVE DISPLAY LENS
Remove the control panel (see page 4-1).
Remove the two remaining T-20 security
screws from the front of the control panel.
To avoid damage, pull the escutcheon away
from the control panel and set it on a towel
or piece of cardboard.
1.
2.
3.
Display lens
T-20 screws
