4-31

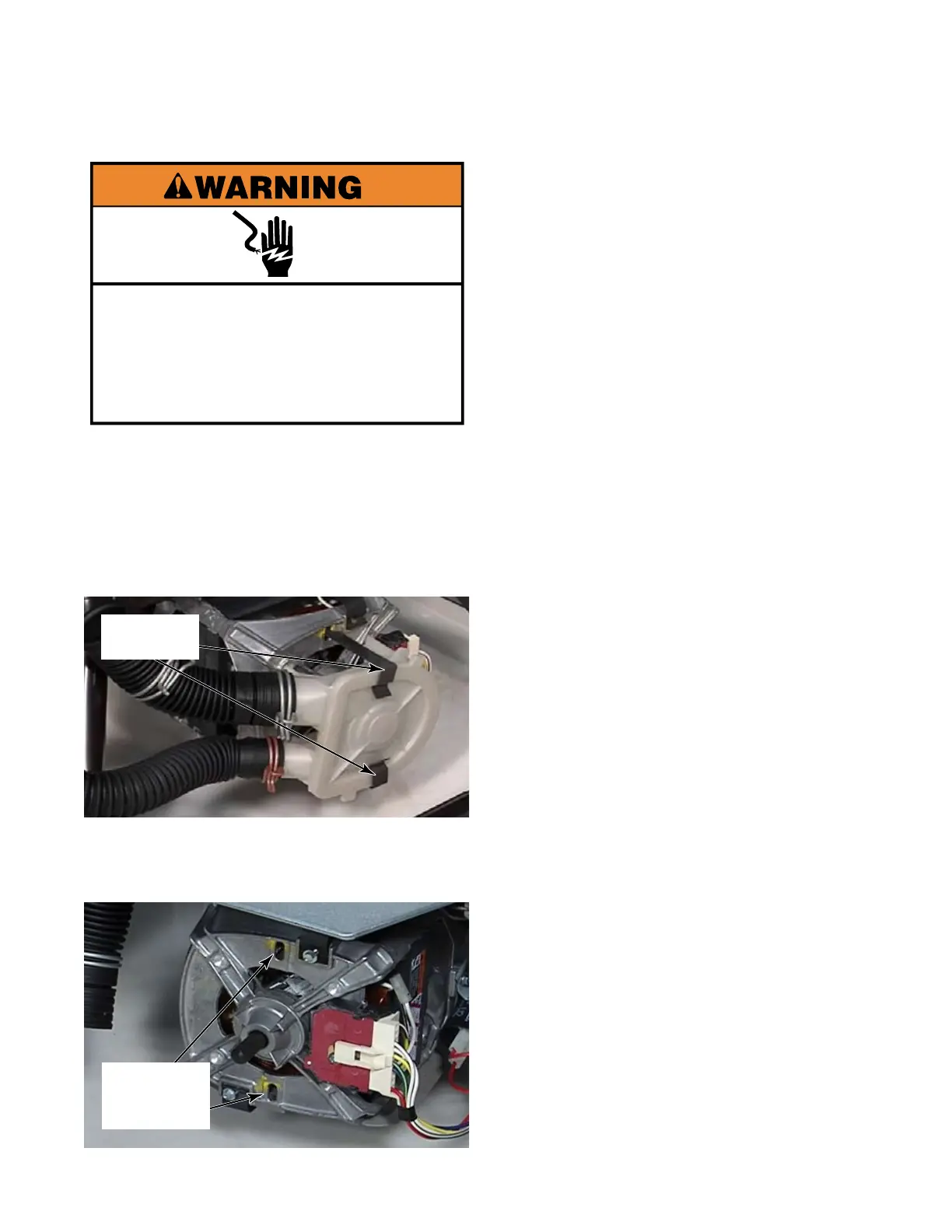

REMOVE THE PUMP
Clips
Pump clip
slots
Remove the cabinet front (see page 4-16).
Remove the two clips that secure the
pump to the motor. Use a small flat blade
screwdriver if needed to remove the clips.
1.
2.
Pull the pump off the motor and remove the
clips by rotating them and pulling them out
of the slots in the motor.
3.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
