4-48
REMOVE THE PUMP

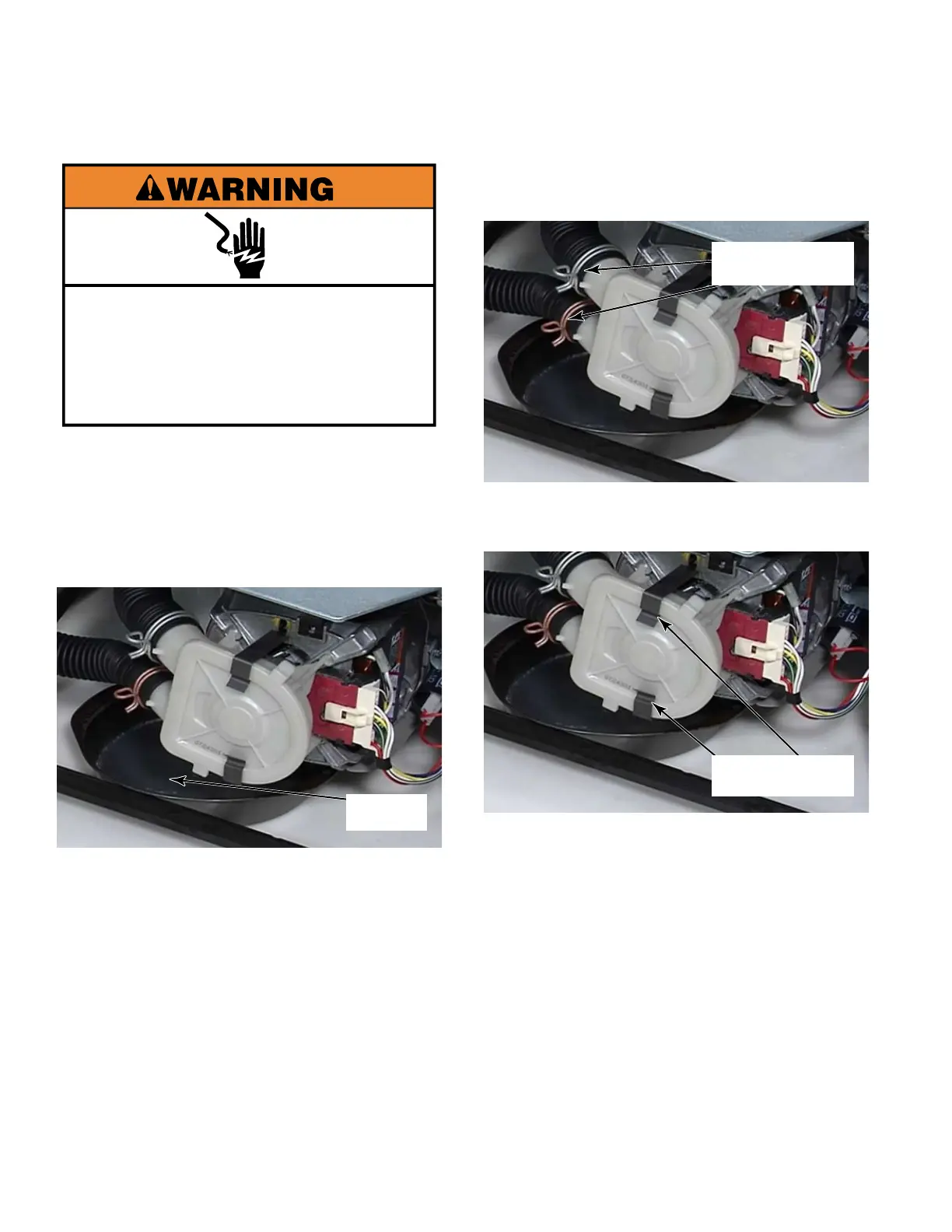

Remove the cabinet front (see page 4-16).
Place a pan under the hoses attached to the
pump to catch any water that may be in the
washer or hoses.
1.
2.
Pan
Hose clamps
Pump clamps
Move the hose clamps from the pump with
pliers down the hoses off the pump outlets.
3.
Remove the clamps that secure the
pump to the motor with a small flat blade
screwdriver.
4.
Remove the clamps from the motor by
turning them ninety degrees and pulling
them out of the motor.
Pull the pump off the motor and pull the
ends of the pump out of the two hoses to
remove the pump from the washer.
5.
6.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
