4-50

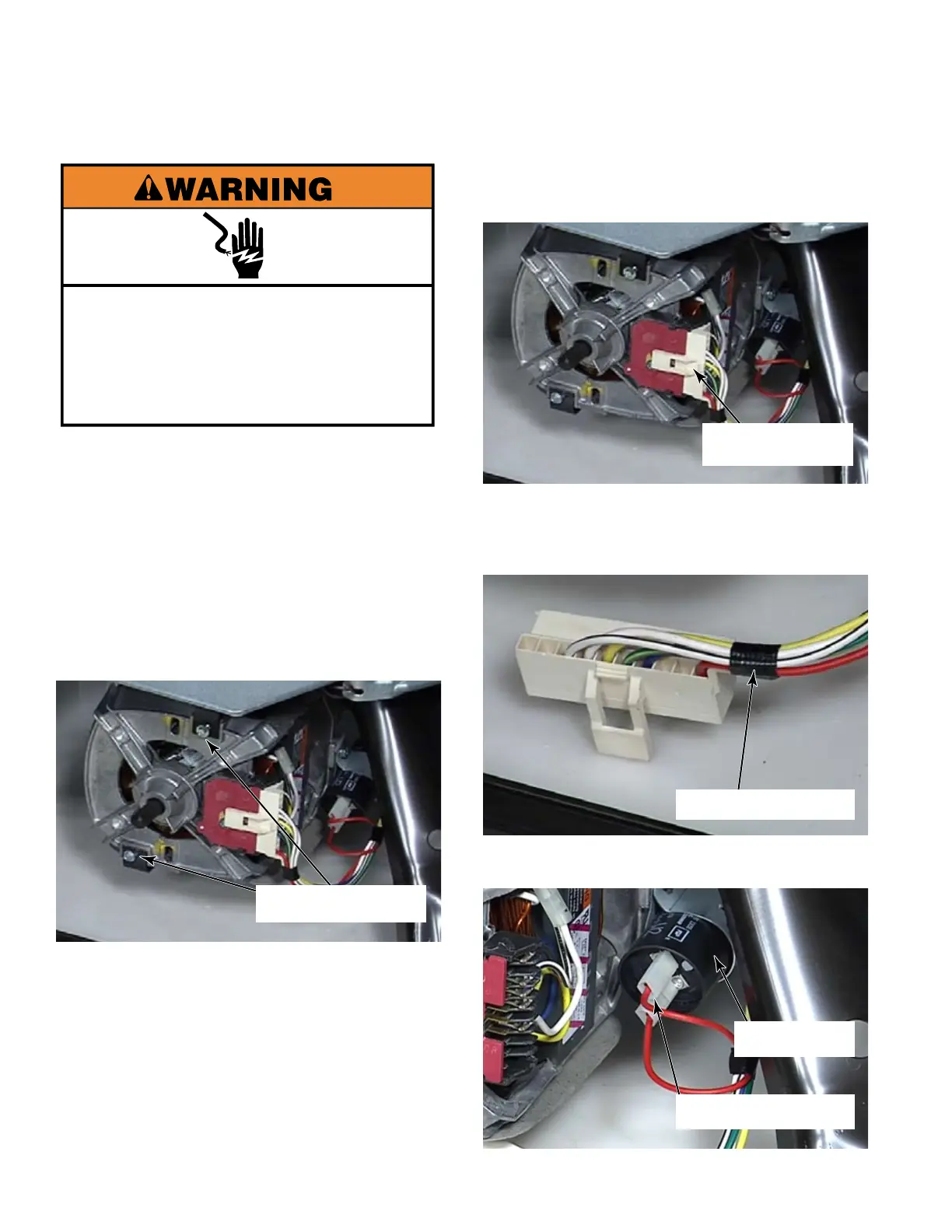

REMOVE THE MOTOR
Remove the cabinet front (See page 4-16).
Remove the pump (See page 4-48).
Remove the shipping screws, if present,
that secure the motor brackets to the front
of the motor. (These shipping screws do
not need to be replaced and may not be
present if this washer has been serviced
before).
1.
2.
3.
Shipping screws
Wire harness
Tape as indicated
Remove the wire harness connector from
the motor by lifting the locking tab and pull
the harness out of the centrifugal switch.
4.
The wire harness wires must be secured
with tape in the position shown here. A wire
tie clipped closely may also be used in lieu
of electrical tape.
5.
Wire connectors
Capacitor
Remove the two wire connectors from the
capacitor on the side of the motor.
6.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
To Next Page
