Maytag MAT14CS - Remove the Tub Seal; Remove Motor Splash Guard

4-30
REMOVE THE TUB SEAL
REMOVE MOTOR
SPLASH GUARD
Remove entire cabinet (see page 4-17).
Remove the agitator (see page 4-23).
Remove the tub ring (see page 4-24).
Remove the basket (see page 4-27).
Remove the tub. (see page 4-28).

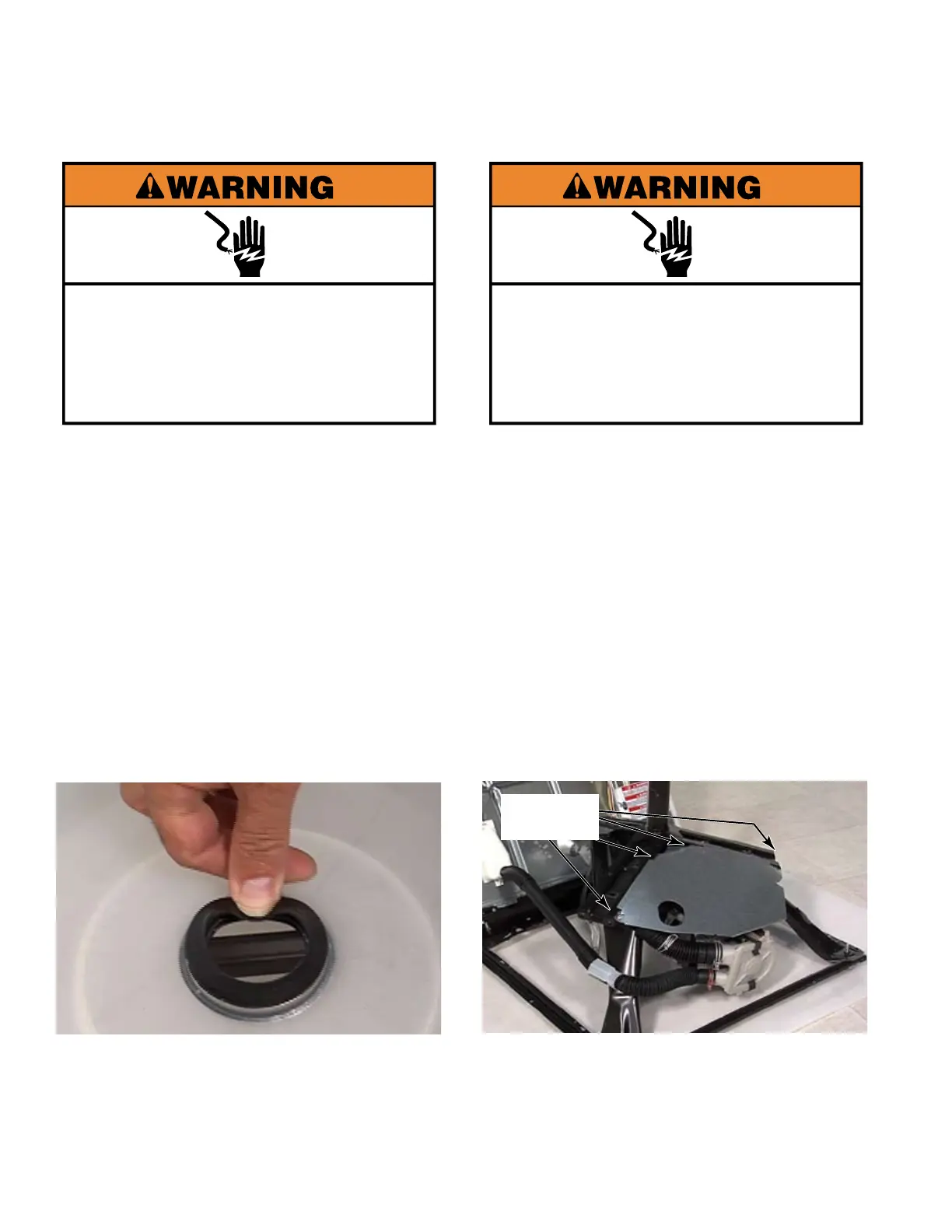

Press the edge of the tub seal through the
tub opening to remove it from the bottom of
the tub.
1.
2.
3.
4.
5.
6.
Remove entire cabinet (see page 4-17).
Remove the agitator (see page 4-23).
Remove the tub ring (see page 4-24).
Remove the basket (see page 4-27).
Remove the tub (see page 4-28).
Remove the motor splash guard by pulling
the splash guard to dislodge the four tabs
that secure it to the base.
1.
2.
3.
4.
5.
6.
4 tabs
