Maytag MAT14CS - Remove Coin Funnel - CS Model

4-43
Remove the service access door on top of
the metercase.
Remove the coin vault from the metercase.
Remove the timer (see page 4-42)
Remove the coin slide (see page 4-41)
Remove the 7/16” nut from inside the coin
vault opening of the metercase.
Lift the front of the funnel out of the hole in
the metercase and slide the tab out of the
slot to remove it.
1.
2.
3.
4.
5.
6.
REMOVE COIN FUNNEL - CS MODEL
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.

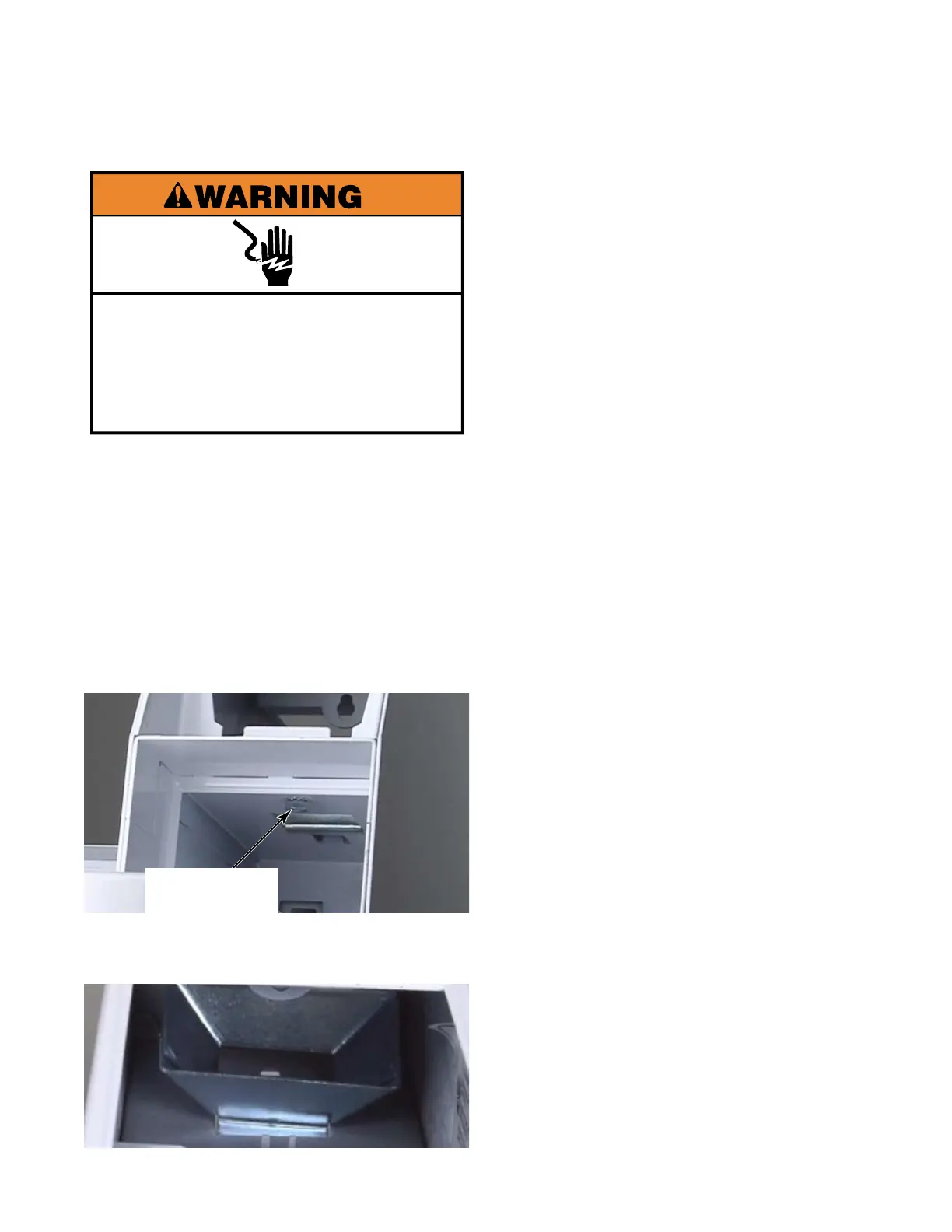

7/16” Funnel
nut
