Maytag MAT14CS - Remove the Relays; Remove Ground Wire

4-8

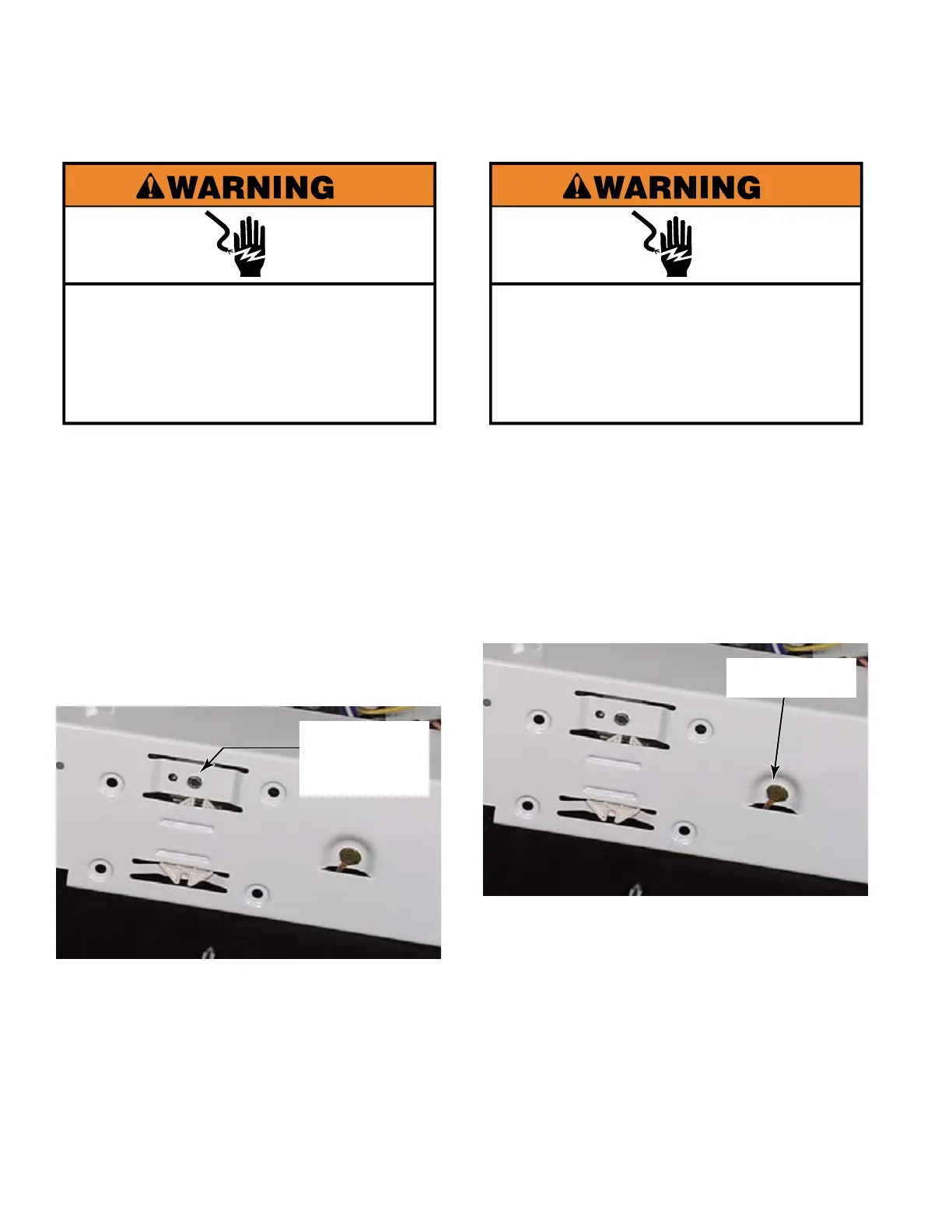

REMOVE THE RELAYS REMOVE GROUND WIRE
Remove the control panel (see page 4-1).
Remove the escutcheon (see page 4-7).
Remove one - 1/4 inch hex head screw from
the front of the control panel.
Remove the reversing relay from the back
side.
The motor main winding relay is also held in
place by the same screw as the first relay.
1.
2.
3.
4.
5.
Remove the control panel (see page 4-1).
Remove the escutcheon (see page 4-7).
Remove one - 1/4 inch hex head screw from
the front of the control panel.
1.
2.
3.
1/4 inch hex
head screw
Ground wire
Remove the wire from the opposite side.4.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
