Maytag MAT14CS - Splash Guard and Retainer - MN Model

4-20

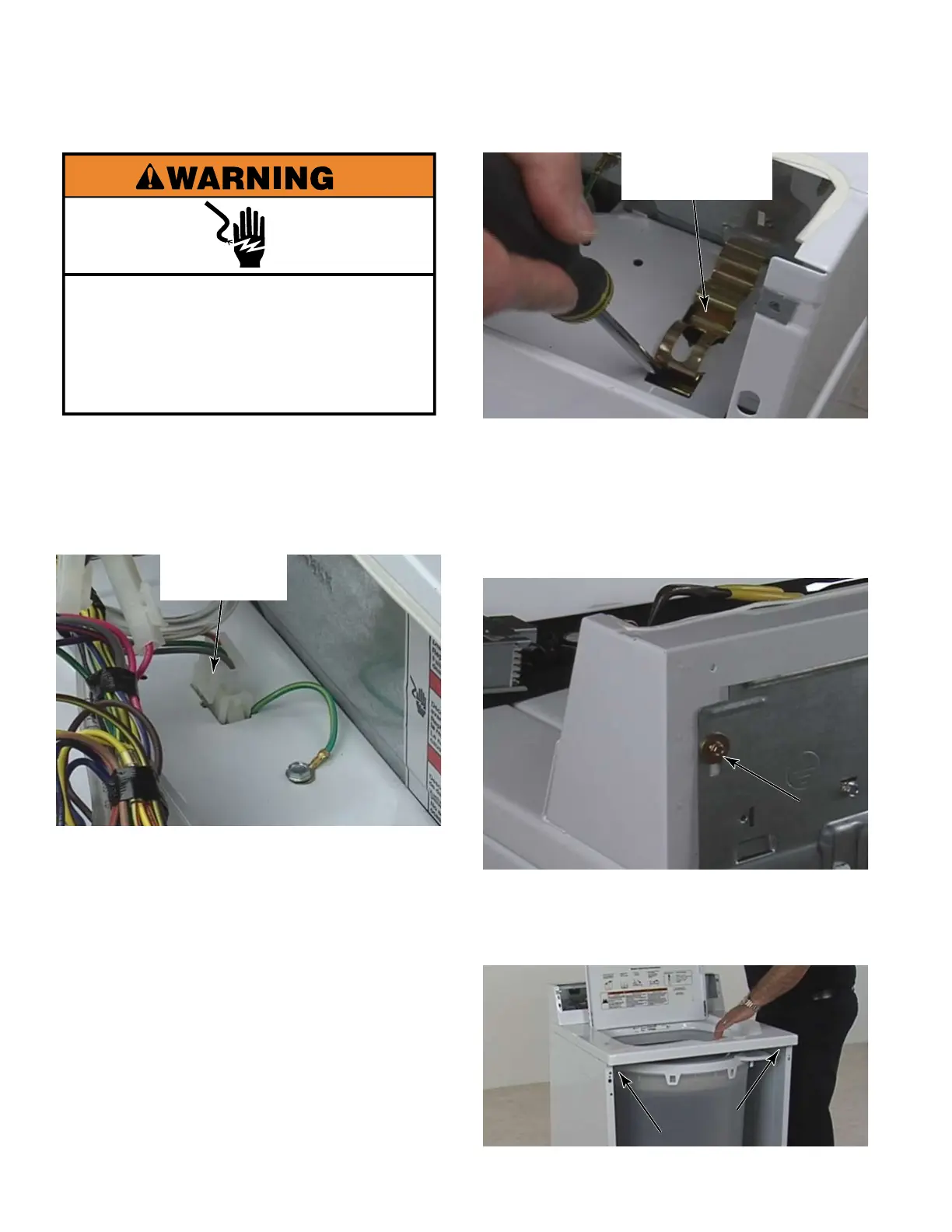

Lift and rotate the cabinet retainer clip up to
remove it from the feature panel at the back.
Remove the two 5/16” screws from both top
corners of the feature panel in the back of
the washer.
Remove the cabinet front (see page 4-16)
Remove the two 5/16” screws from the
underside of the front two corners of the top.
5.
6.
7.
8.
Remove the control panel (see page 4-1).
Disconnect the lid switch connector in the
console.
Remove the two cabinet retainer clips inside
the console. Use a flat blade screwdriver
that is shorter than the control cover
assembly when inserted in the hole at the
front of the cabinet retainer clip.
With slight pressure applied, push the
screwdriver down and the handle toward the
back of the cabinet to release the retainer
clip.
1.
2.
3.
4.
SPLASH GUARD AND RETAINER - MN MODEL
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Lid switch
connector
Cabinet retainer
clip
