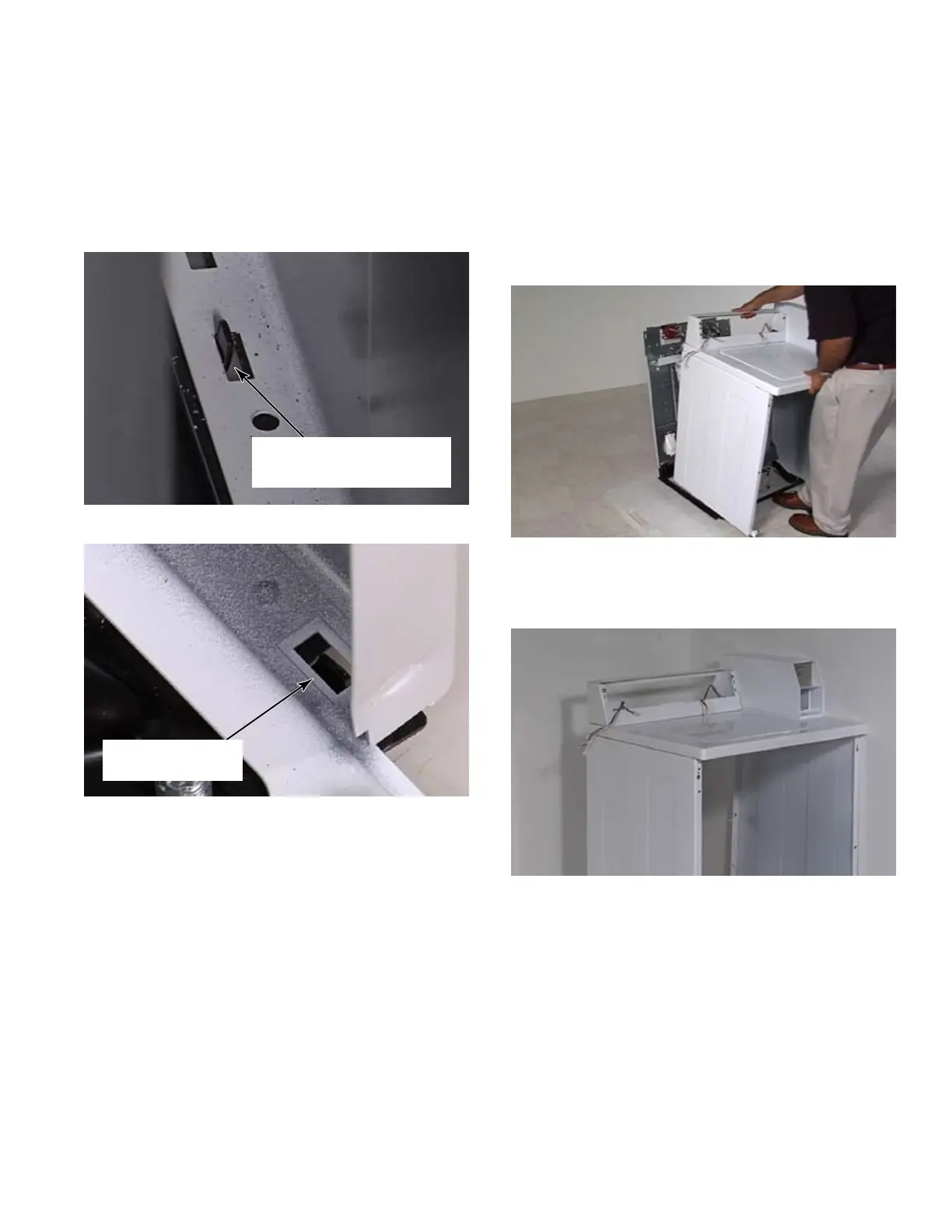

There are locator tabs at each corner of
the base that go through holes in the side
panels to assist in aligning the cabinet for
reassembly.
12.
Begin to remove the cabinet by lifting up
on the top and metercase and pulling the
cabinet forward off the base slightly.
Pass the control panel through the control
cover assembly, resting it on the tub ring.
13.
14.
Remove the cabinet and rest the
metercase side against a support to keep
the cabinet standing since it will not stand
by itself.
15.
