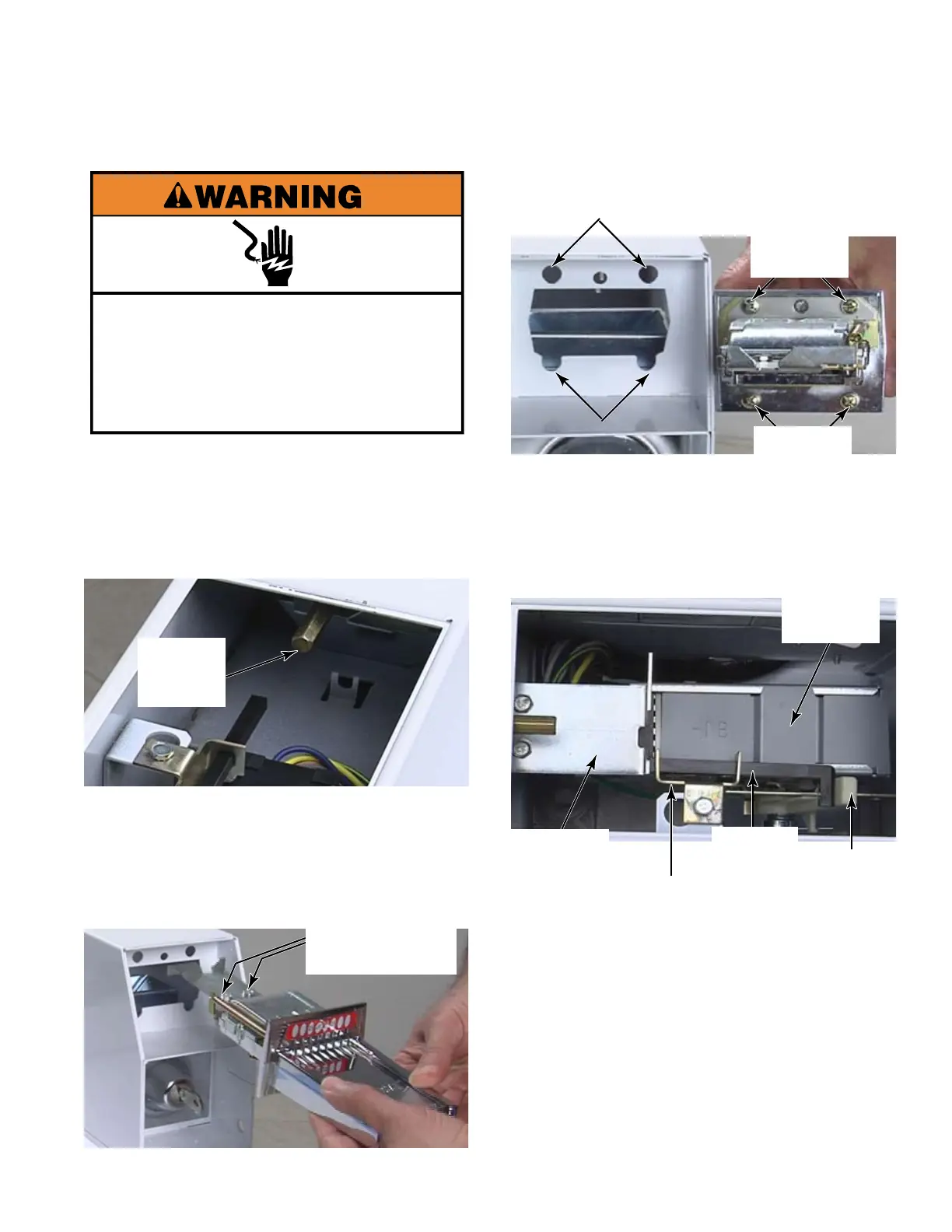

Maytag MAT14CS - Remove the Coin Slide - CS Model

4-41
Shoulder bolts on the coin slide fit into the
holes and slots of the metercase.
When reassembling the coin slide, make
sure that the extension is aligned properly
in order to activate the timer. The extension
should not push as far as to come into
contact with the timer mounting bracket.
5.
6.
Remove the service access door on the top
of the metercase.
Using a 5/16” wrench, unscrew the security
bolt at the top of the metercase and remove
it.
Lift the coin slide up from the front and pull it
out of the metercase.
The coin slide extension is connected to the
end of the coin slide by two Phillips screws.
It contacts the timer actuator.
1.
2.
3.
4.
REMOVE THE COIN SLIDE - CS MODEL
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
5/16”
security
bolt
2 Phillips screws
Shoulder
bolts
Shoulder
bolts
Extension
Timer
mounting
bracket
Timer
Timer
actuator
Actuator
push bar
