4-42
Open the control panel and remove the two
9 pin wire connectors to the timer from the
console.
Remove the service access door on top of
the metercase.
Remove the 5/16” hex head screw from the
bracket that secures the timer. If the coin
slide is mounted with a long security bolt
as shown below it may be necessary to
remove it to get the timer out.
The two timer wire harness connectors are
color coded and keyed so that they can
only be inserted into the correct plug on the
timer.
1.
2.
3.
4.

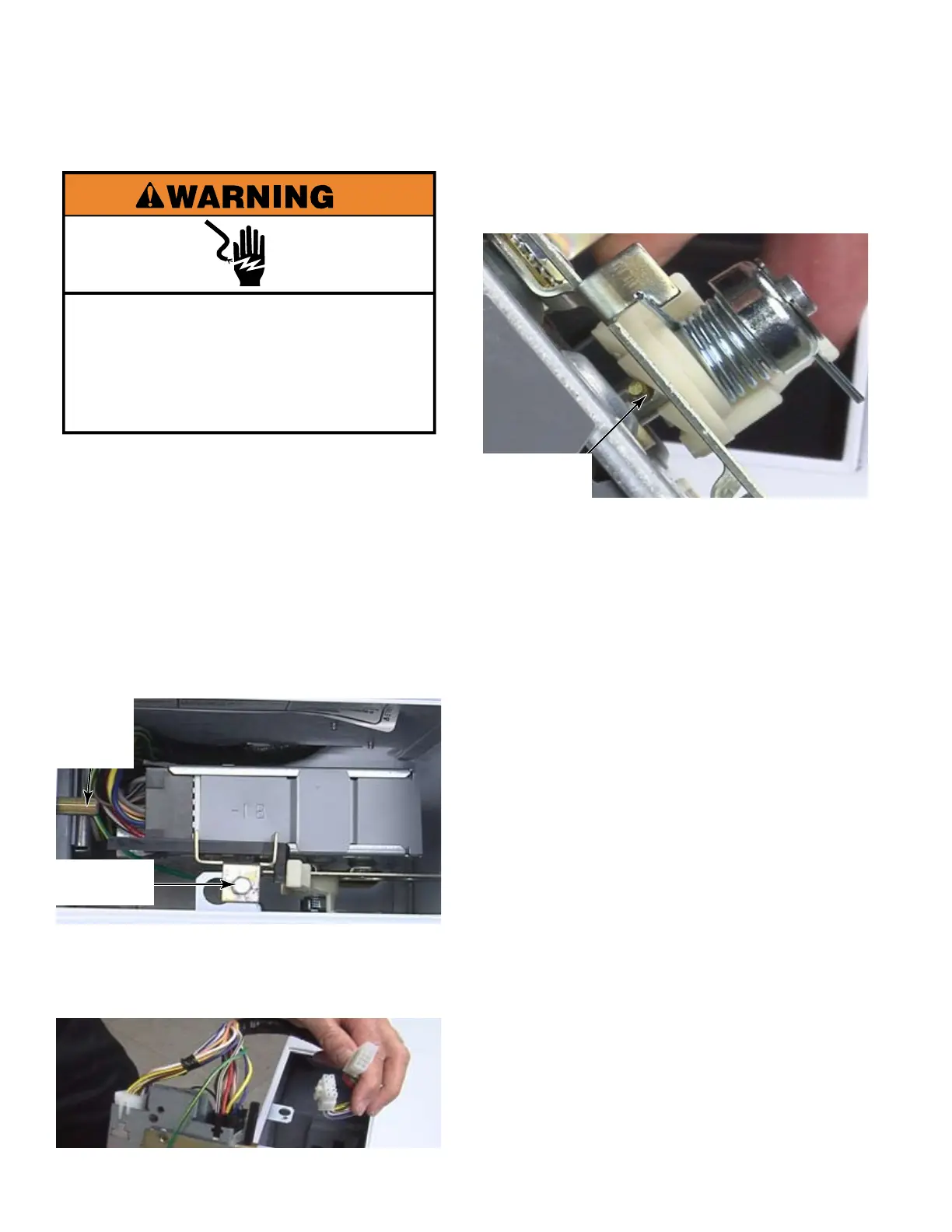

REMOVE THE TIMER - CS MODEL
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
The cam mechanism on the timer has
a small brass pin by the teeth of the cam
which is the lubrication point for the cam.
5.
5/16”
screw
5/16”
security
bolt
Lubrication
point
