4-22
Remove the entire cabinet (see page 4-17)
Remove the hose from the vacuum break
(see page 4-21, step 1)
Squeeze the two tabs of the Christmas tree
clip together and push it through the hole to
release the clamp.
Use a pair of pliers to move the second
hose clamp down the hose and pull the
hose off the water inlet valve and remove it.
1.
2.
3.
4.
REMOVE THE INLET HOSE - MN MODEL
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.

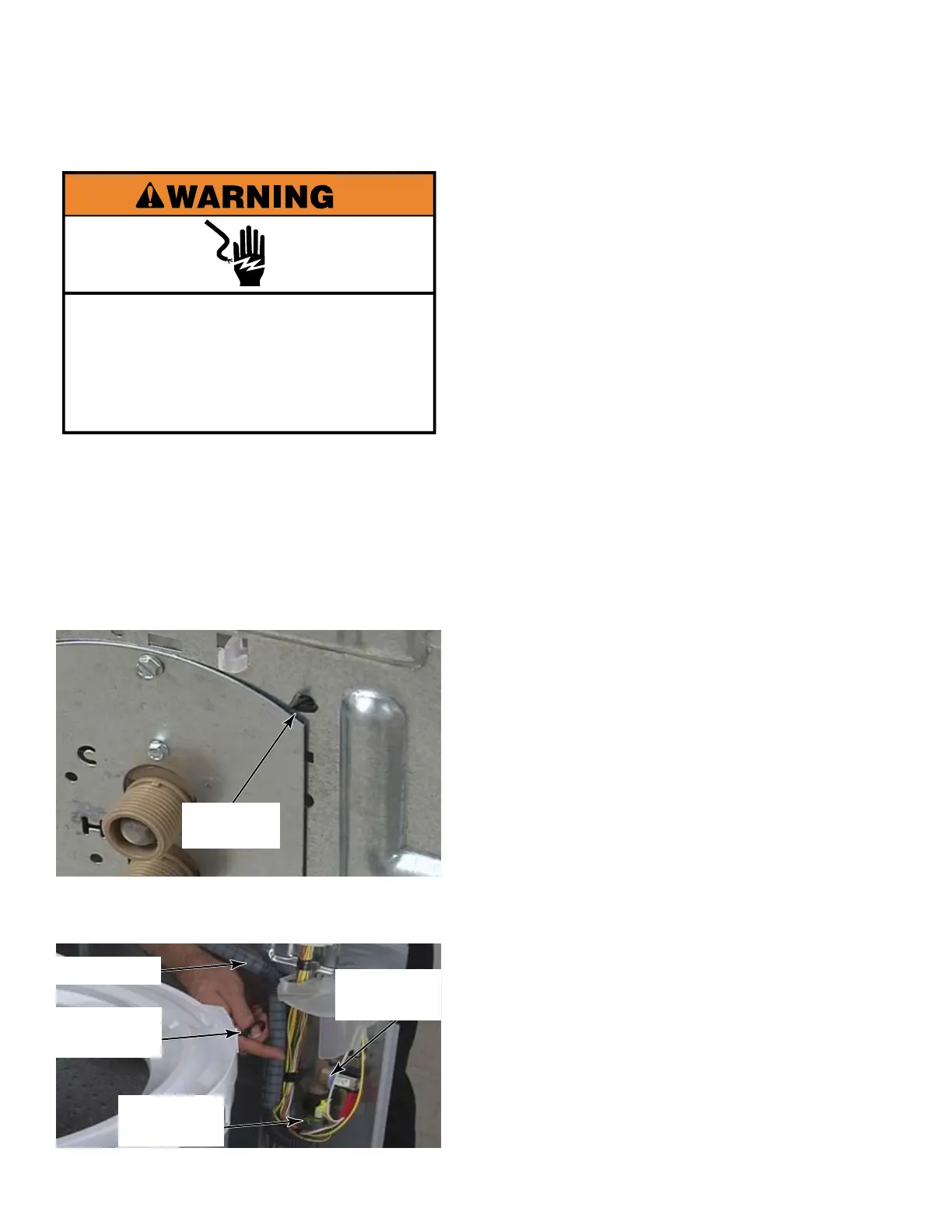

Christmas
tree clip
Water inlet
valve
Inlet hose
clamp
Christmas
tree clip
Inlet hose
