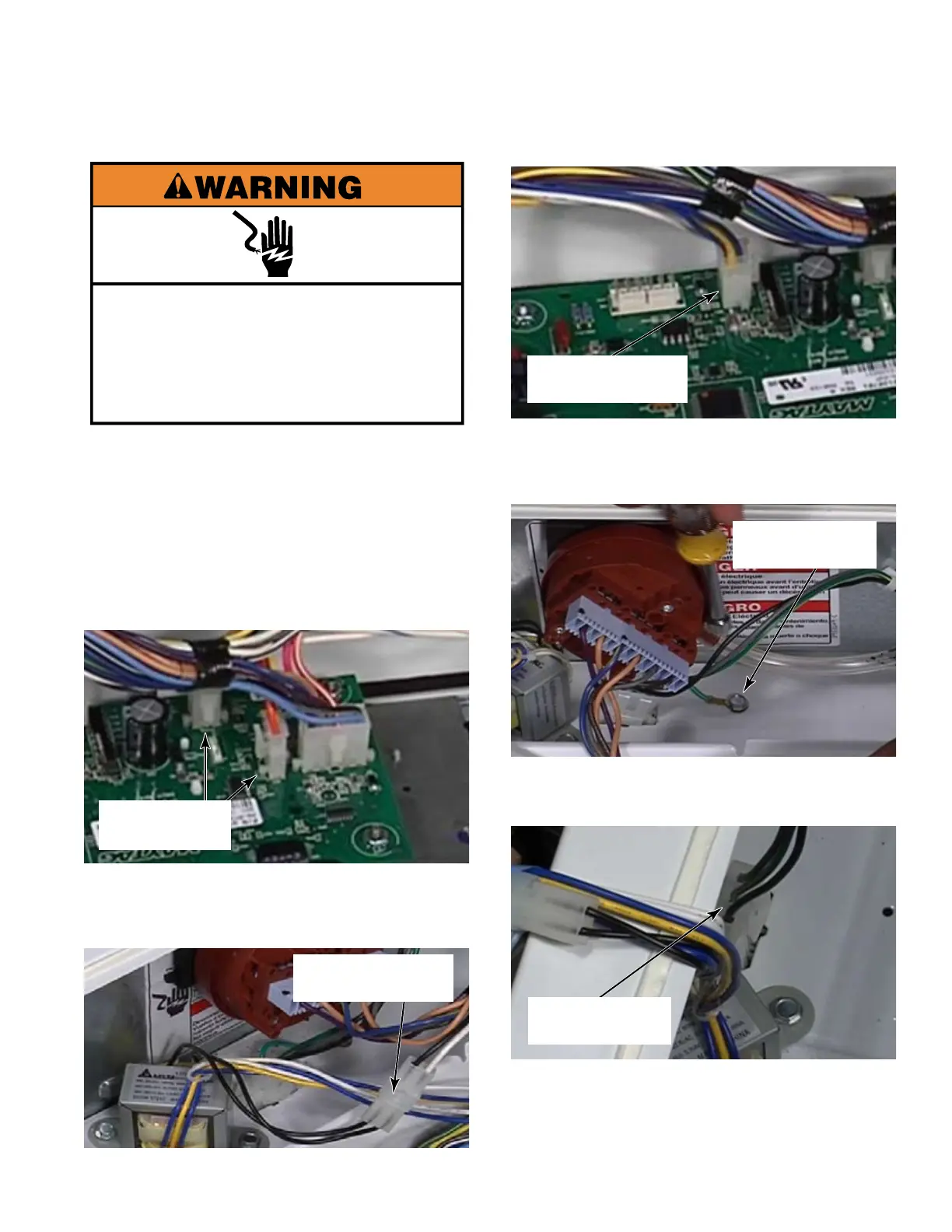

Maytag MAT14CS - Remove Entire Cabinet

4-17
Remove the control panel (see page 4-1).
Remove the two wire connections from the
control board that go into the metercase.
PD model is shown here. On CS models
unplug the timer wire harness connections.
1.
2.
REMOVE ENTIRE CABINET
Two wire
connectors
Molex plug
Transformer wire
connector plug
Remove the two wire connections to the
transformer, one Molex plug and one
connection on the control board.
3.
Remove the 5/16 inch hex head screw
securing the ground wire that goes to the lid
switch.
4.
Lid switch
ground wire
Remove the wire harness connector plug to
the lid switch.
5.
Lid switch wire
connector
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
