4-21
Slide the top forward to allow the shoulder
bolts mounted in the rear corners of the top
to exit the snowman shaped holes in the
side panels.
Lift the top up and off the feature panel.
Pass the control panel through the control
cover assembly, resting it on the tub ring.

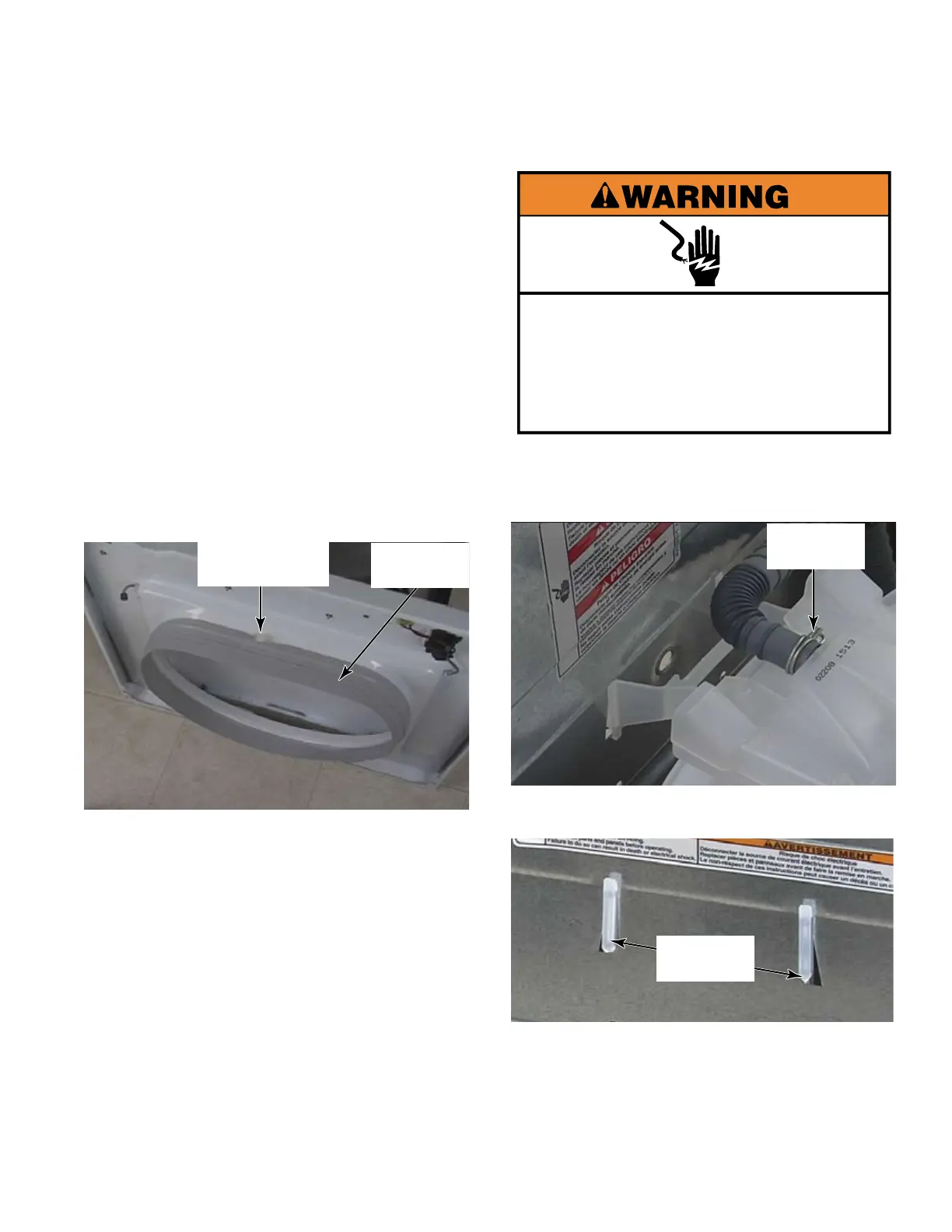

The splash guard is attached to the
bottom of the washer top with a large wire
tie type retainer that passes through a
channel at the top edge of the splash guard.
The retainer is a one time use part and must
be replaced with a new one if it is cut and
removed.
9.
10.
11.
12.
Wire tie type
retainer
Splash
guard
Slide the hose clamp down the hose and
remove the hose from the vacuum break.
Spread the mounting tabs towards the
outside of the machine.
Rotate the vacuum break up and then down
to release the top tabs from the feature
panel and remove it from the washer.
1.
2.
3.
REMOVE THE VACUUM
BREAK - MN MODEL
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Hose
clamp
Mounting
tabs
