Maytag MAT14CS - Remove the Timer - MN Model; Remove the Controls - MN Model

4-4

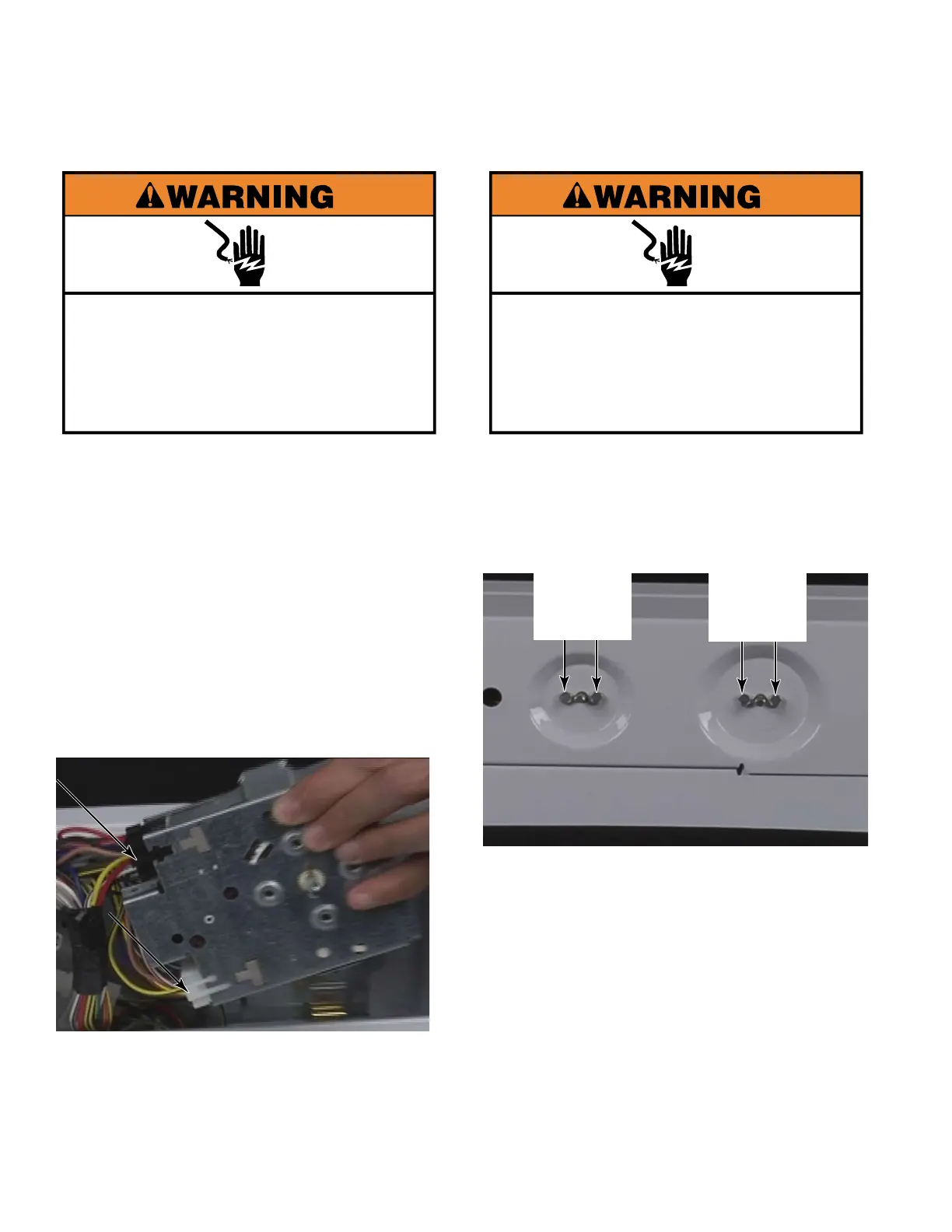

Remove the control knobs. Use a flat blade
screwdriver to pry them off their shafts.
Remove 2 - 5/16” screws that hold each
control onto the control panel.
1.
2.
REMOVE THE CONTROLS
- MN MODEL
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
2 - 5/16”
hex head
screws
2 - 5/16”
hex head
screws
Remove the timer knob (see page 4-3).
Remove the 2 - 5/16” hex head screws that
secure the timer to the control panel.
It is necessary to remove the timer from the
console in order to remove the wire harness
blocks from the timer.
Once the timer is removed from the control
panel the wire harness blocks may be
removed by pressing in on both of the
release tabs on either side of each block and
pulling the block away from the timer.
1.
2.
3.
REMOVE THE TIMER
- MN MODEL
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
