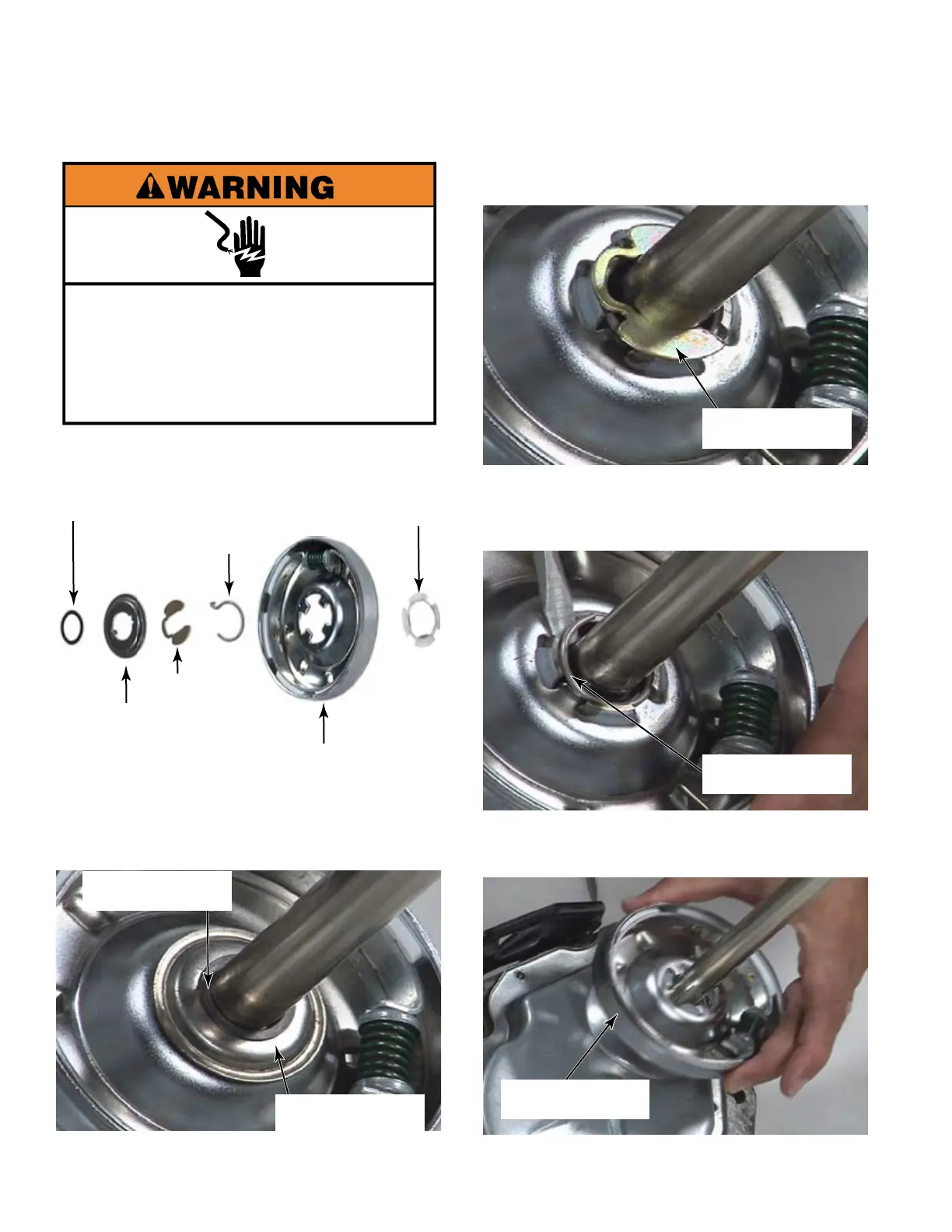

REMOVE CLUTCH ASSEMBLY AND PARTS
Spring retainer
Remove the vespal bearing1.
E-clip
Remove the E-clip with a small flat blade
screwdriver.
3.
Clutch
Remove the spring retainer with a small flat
blade screwdriver from under the tabs by
prying under the spring retainer.
4.
Remove the clutch by sliding it up off the
agitator shaft.
5.
Spring retainer
Clutch
Thrust washer
E-clip
Vespal bearing
Anti rattle clip
Remove the thrust washer. 2.
Thrust washer
Vespal bearing
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
