4-15

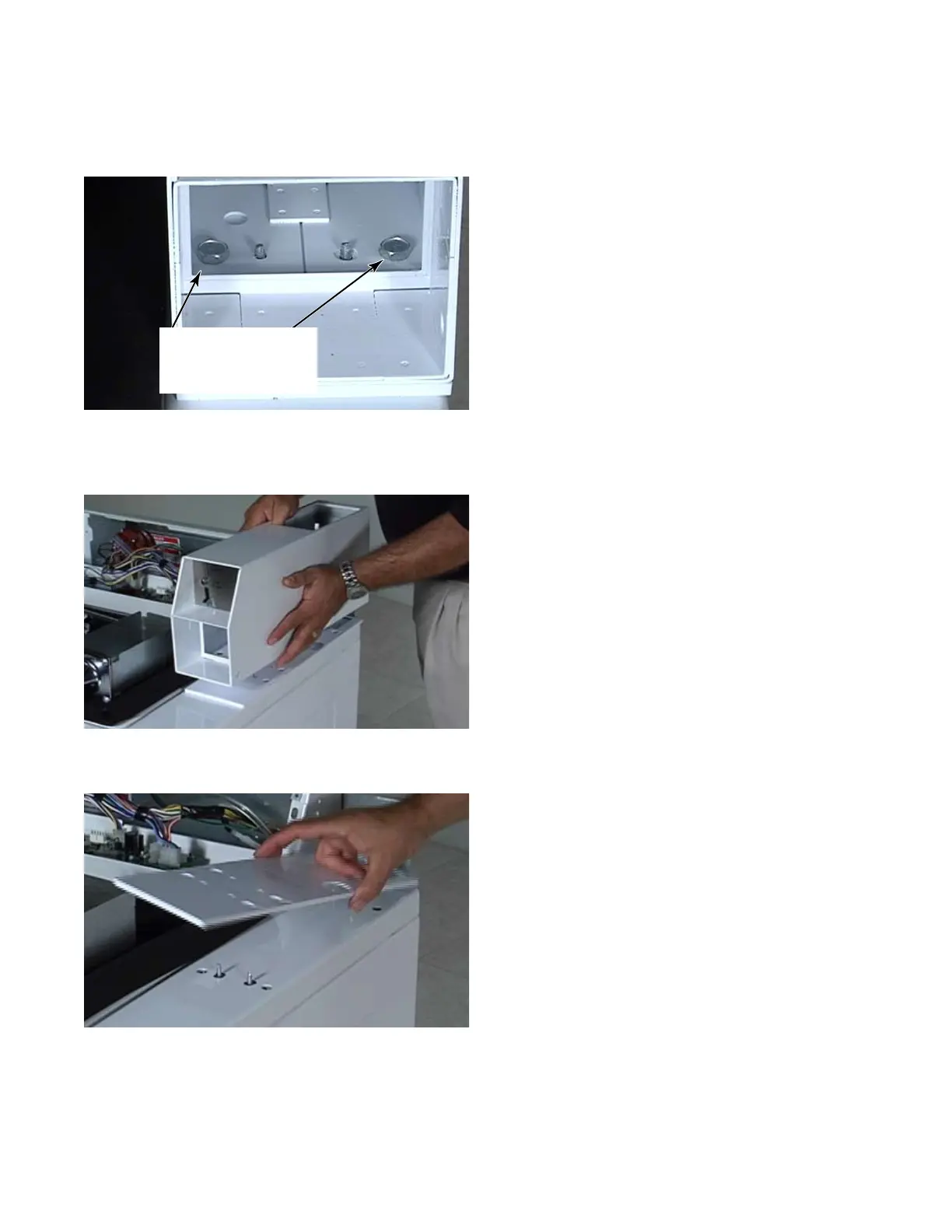

Two - 1/2 inch
hex head bolts
Unlock and remove the coin vault to access
and remove two - 1/2 inch hex head bolts at
the front of the metercase.
7.
Lift the metercase off the washer top and
pull the wires out from the hole in the side of
the control cover assembly.
8.
Remove the pad between the washer and
metercase by lifting it off the washer top.
9.
To Next Page
