X Voltage (V): The MVCT displays the real time voltage readings of the secondary X winding
while the test is in progress.
X Current (A): The MVCT the real time current readings for the secondary X winding while the
test is in progress.
H Voltage (V): The MVCT the real time voltage readings of the primary H winding while the test
is in progress.
19. At any point of time Test can be terminated by hitting the ABORT button at the top
of the screen.

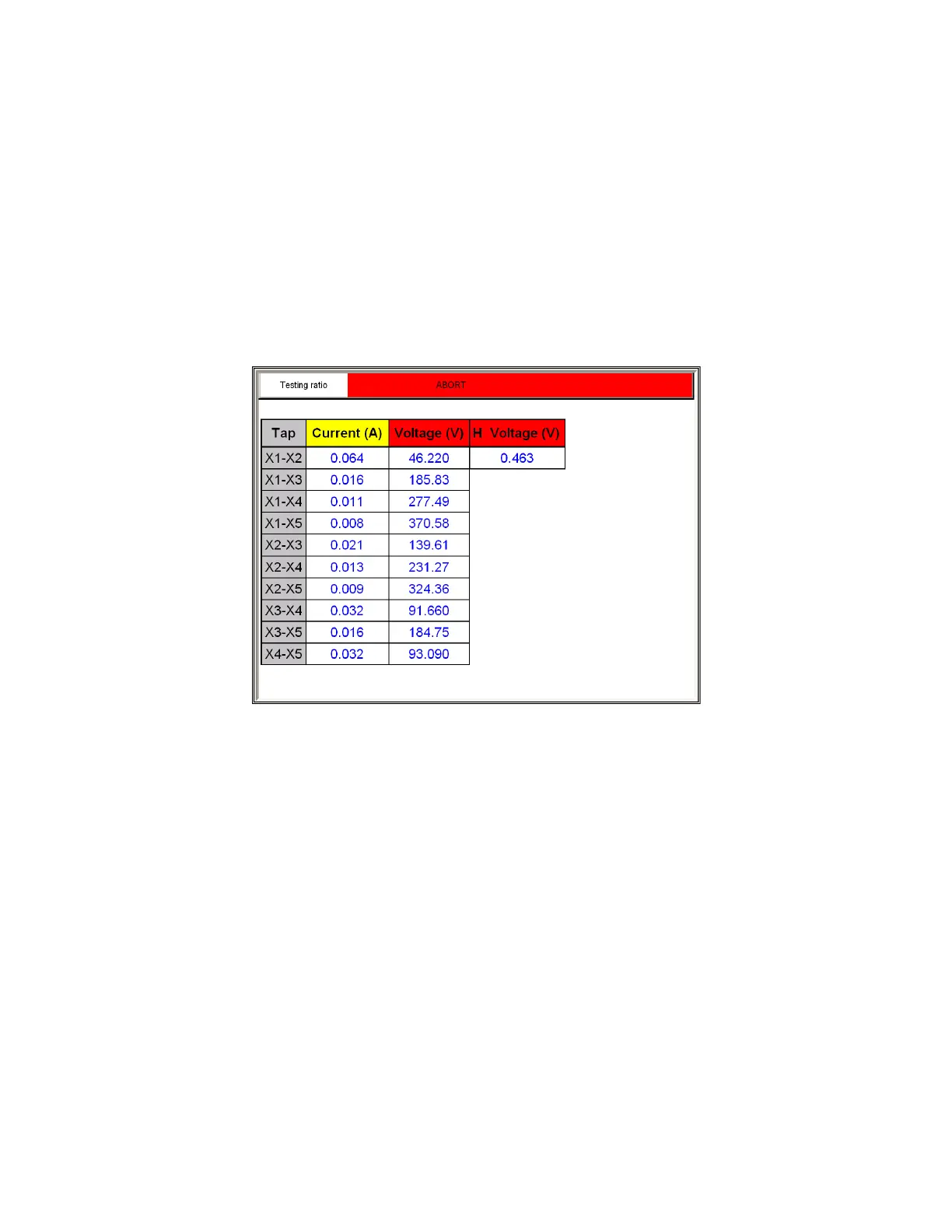

Figure 72 CT Ratio Testing Screen - Abort
20. Upon completion of all test the results will be displayed in the test screen or they can be
displayed in a test report.
