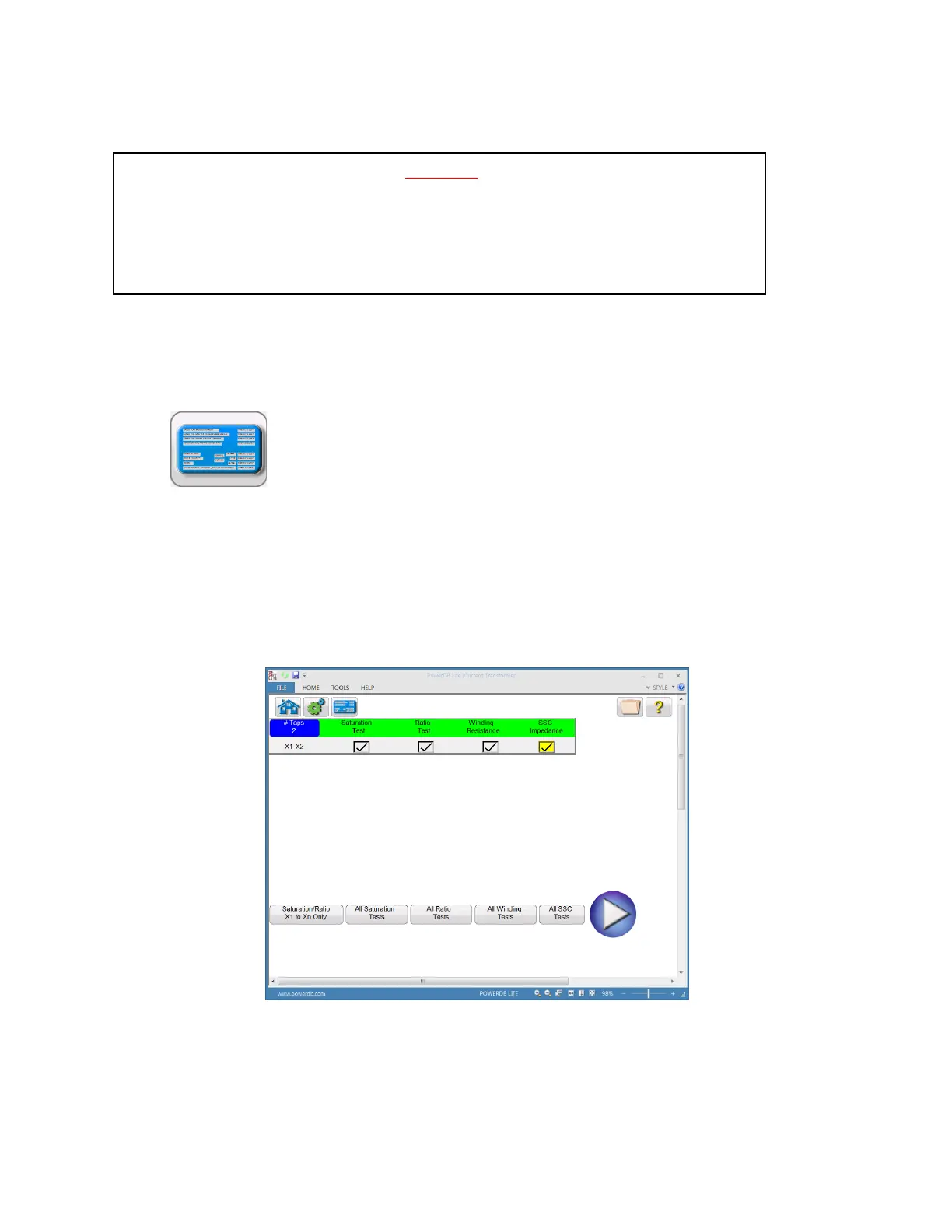

3. Turn Power ON/OFF switch to ON.

4. After the boot up, set the testing mode to VT and select the “Nameplate Information” menu by

selecting

Name Plate navigation button.

5. Fill in nameplate information about the VT. At a minimum, the number VA rating and the

secondary voltage of the VT must be entered

6 In the Home Screen, select the Run All Tests button. Within the Run All Test screen select all of the

tests by placing a check in the adjacent box

Figure 96 VT Test Plan Screen

7. Select the individual taps for saturation testing by placing a check in the corresponding

WARNING

The MVCT produces high voltages and currents during the performance of tests. DO NOT

TOUCH connector clips or test leads while the MVCT is performing a test.
