9. Select the play button and a connection diagram will appear showing how to correctly connect the

MVCT to the VT

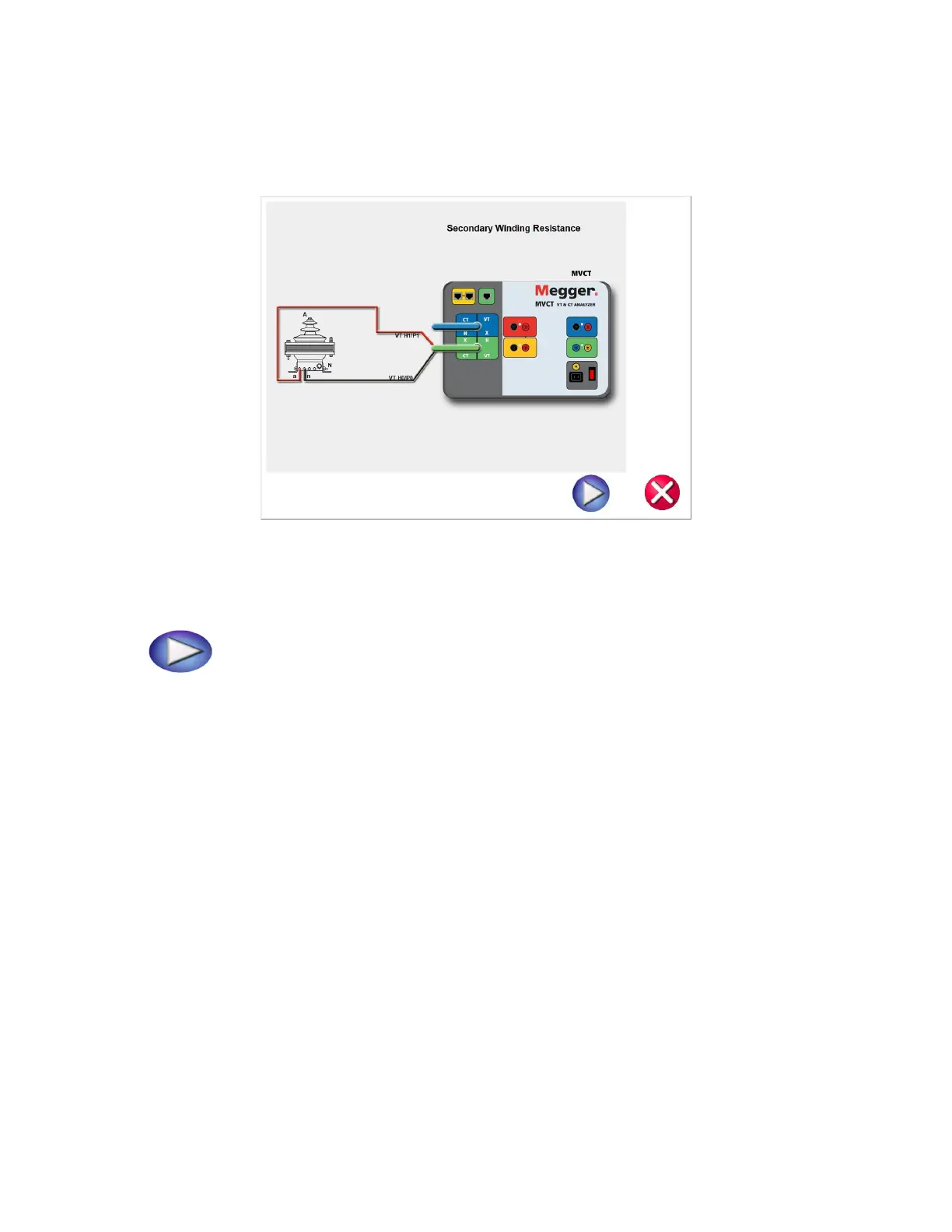

Figure 112 VT Winding Resistance Connection Diagram

10. Check all connections to ensure correctness

11. Hit Blue Play button to begin test.

12. The Winding Resistance test will begin.

 X Voltage (V): The MVCT displays the real time voltage readings of the secondary X winding

while the test is in progress.

 X Current (A): The MVCT the real time DC current readings for the secondary X winding while

the test is in progress.

13. At any point of time Test can be terminated by hitting the ABORT button at the top

of the screen...
