6. Select the play button and a connection diagram will appear showing how to correctly connect

the MVCT to the VT

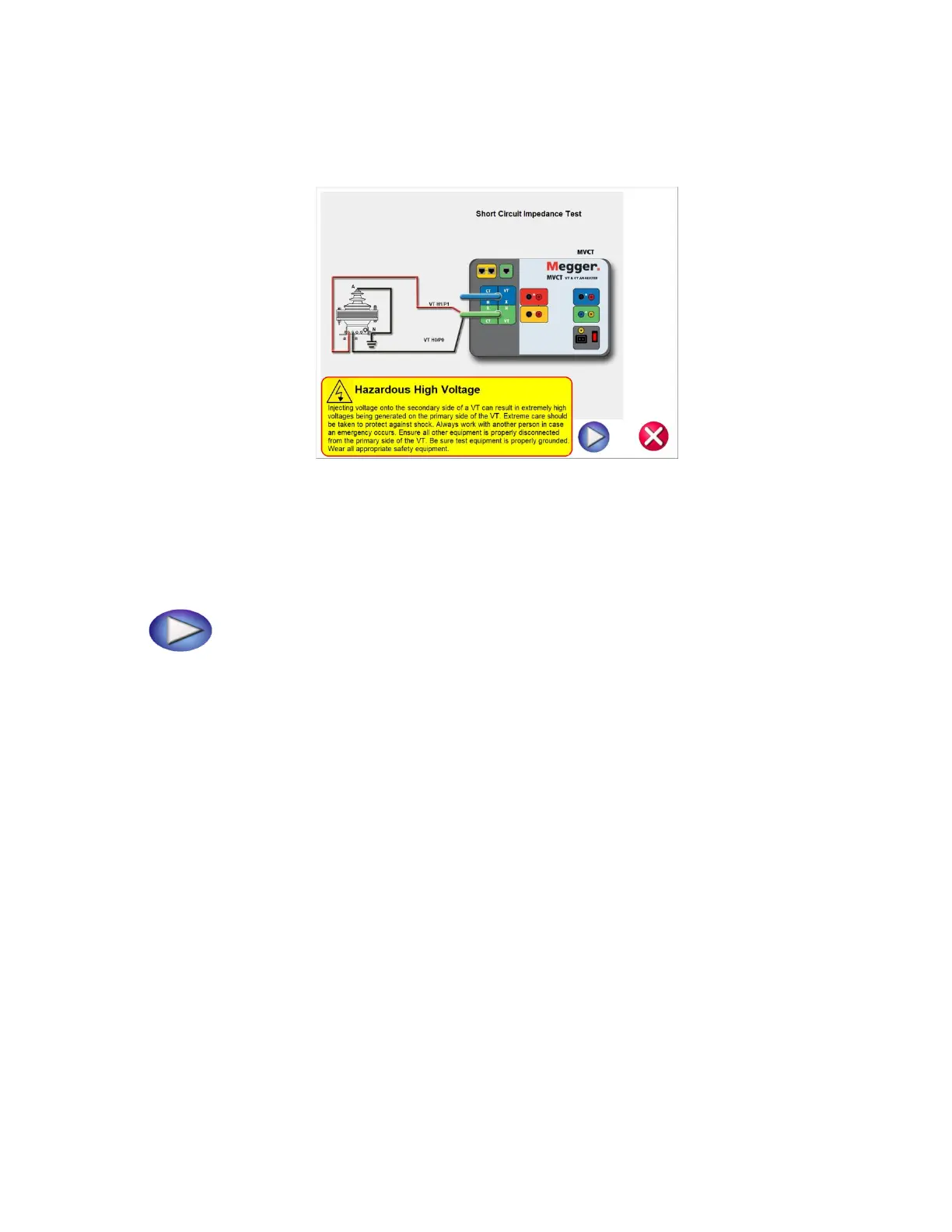

Figure 116 VT Short Circuit Impedance Connection Diagram

7. Check all connections to ensure correctness

8. Hit Blue Play button to begin test.

9. The Short Circuit Impedance test will begin.

 X Current (A): The MVCT the real time DC current readings for the secondary X winding while

the test is in progress.

 Voltage (V): The MVCT displays the real time voltage readings of the secondary X winding while

the test is in progress.



10. At any point of time Test can be terminated by hitting the ABORT button at the top

of the screen...
