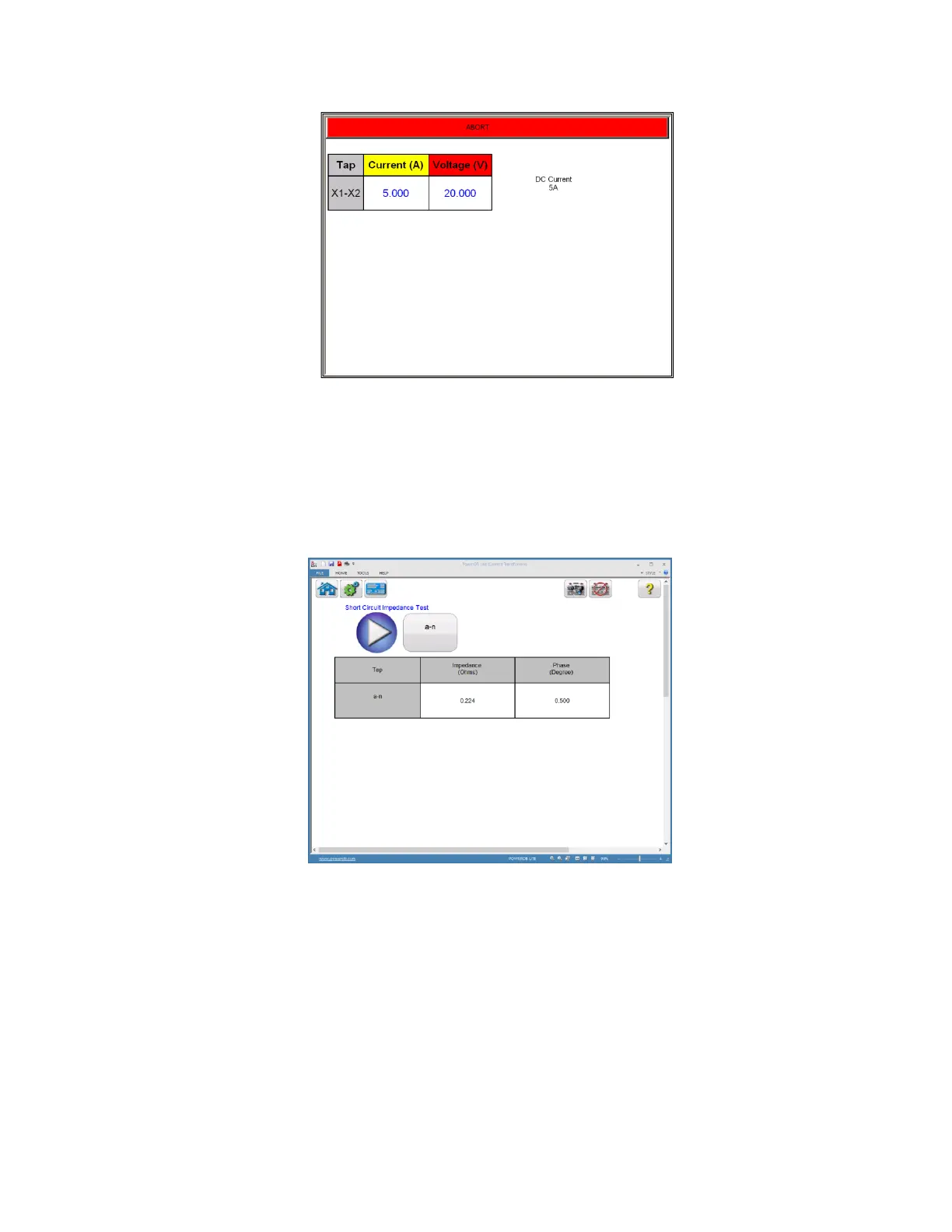

Figure 117 VT Short Circuit Impedance –Abort

11. Upon completion of test the results will be displayed in the test screen or in a

test report if desired.

Figure 118 VT Short Circuit Impedance Results

Short Circuit Impedance test is used to determine the impedance of the VT secondary and primary

windings. After measurement the impedance is calculated and displayed on the screen.

These values are used along with additional test values to estimate the VT performance at rated line

voltage.
