10.1 ISDN-U I/O Card Components

Important components on the ISDN-U I/O Card include:

• edge connector

• port connector

• signal LEDs

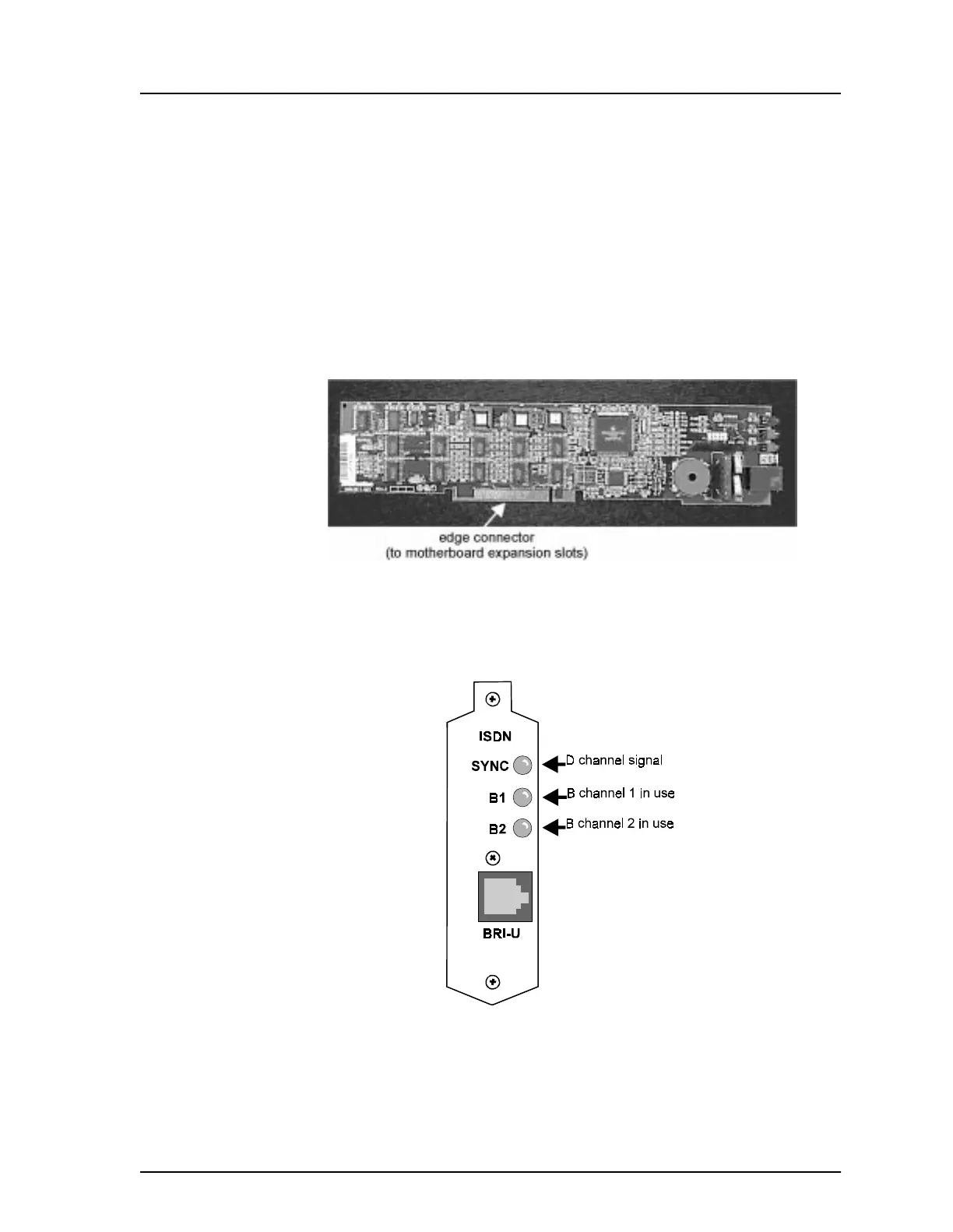

Figure 10-1 ISDN-U I/O Card

Figure 10-2 ISDN-U I/O Card, Connector Plate
