CX950 Hardware Reference Manual

20-2

3021M100-002

20.1 -48V/Ring Generator Components

Important components on the -48V/Ring Generator card include:

• motherboard connector located at J2

• fastener to the chassis’ rear panel

20.1.1 Features

-48V Power Output Voltage: -48 to -52 VDC

Current: 320 mA

-12V Power Output Voltage: -12 VDC

Current: 200 mA

Ring

Generator

Output Voltage: 86V (RMS)

Load: 8 Phone sets

Frequency: 20 Hz

Signal Shape: Square-wave filtered

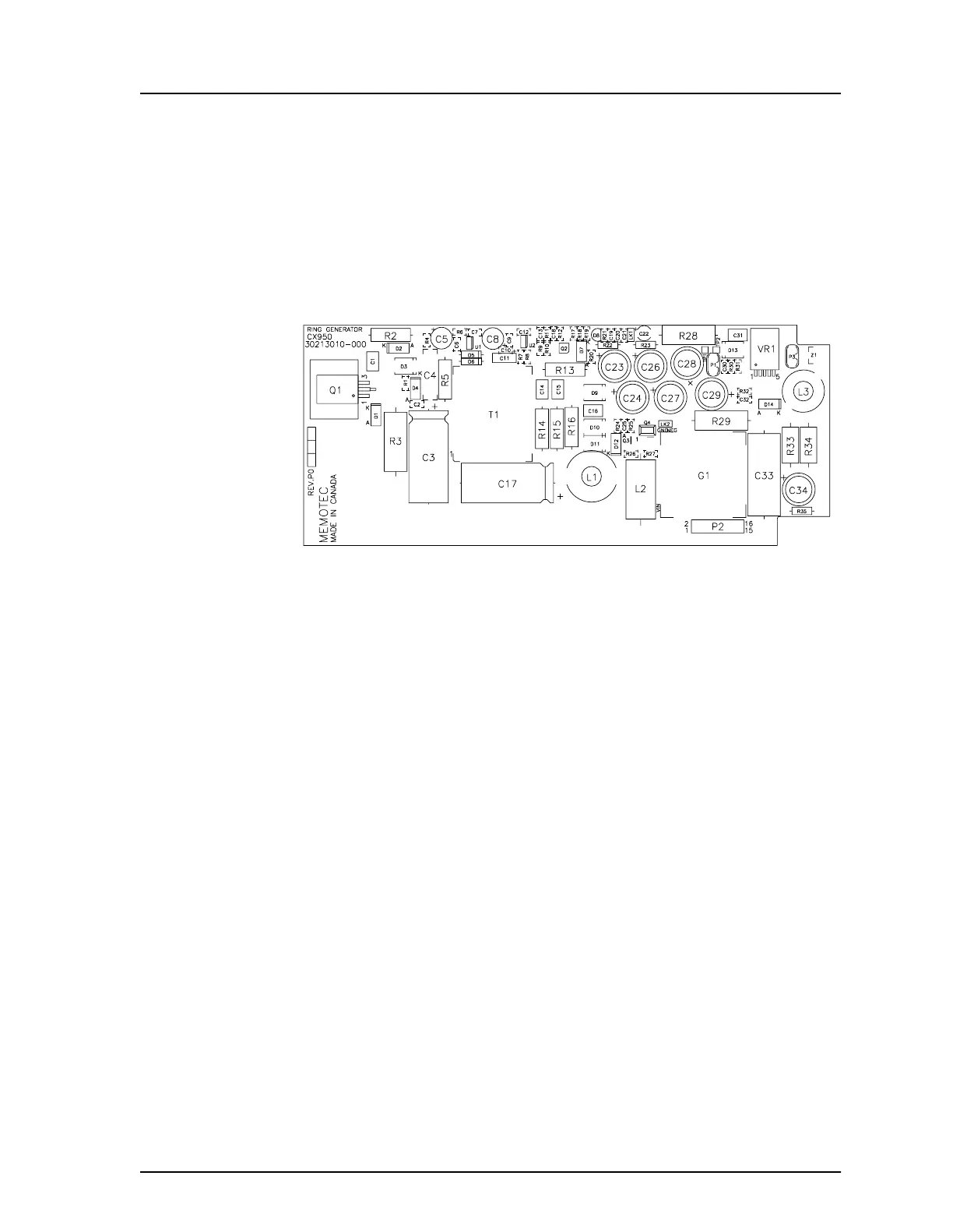

Figure 20-1 -48V/Ring Generator Ca
