Memotec CX950

To Next Page

To Previous Page

CX950 Hardware Reference Manual

4-14

3021M100-002

The edge connector fixes the card to any one of the motherboard’s expansion slots

1-8.

The connector plate fixes the female DB-15 connector to the chassis’ rear panel

with two Phillips-head screws and limits dust accumulation and electromagnetic

radiation.

Cable

The X.21 Serial I/O Card connects to external devices through a separately-

ordered three-meter (10 ft.) shielded, twisted pair cable (part no. CBLA0012-110)

with a male DB-15 connector (ISO 4903) at each end.

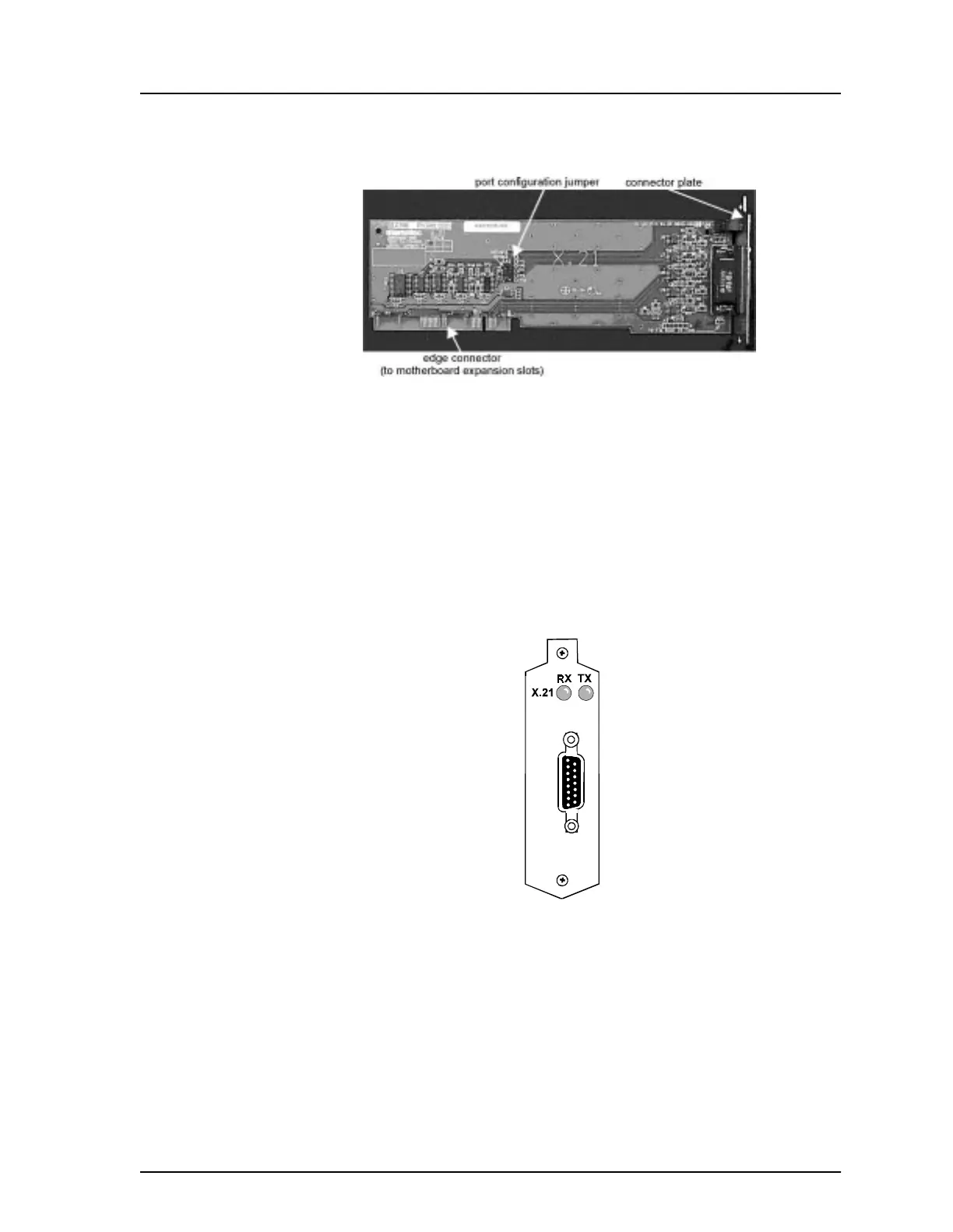

Figure 4-10 X.21 Serial I/O Card

Figure 4-11 X.21 Serial I/O Card, Connector Plate
