14.1 Token Ring LAN I/O Card Components
Important components on the Token Ring LAN I/O Card include:
• edge connector
• port connectors
The edge connector fixes the card to any one of the motherboard’s expansion slots
1-8.
The connector plate fixes the female DB-9 connector (for shielded twisted-pair, or
STP, cable) and female RJ-45 connector (for unshielded twisted-pair, or UTP,
cable) to the chassis’ rear panel with two Phillips-head screws and limits dust
accumulation and electromagnetic radiation.

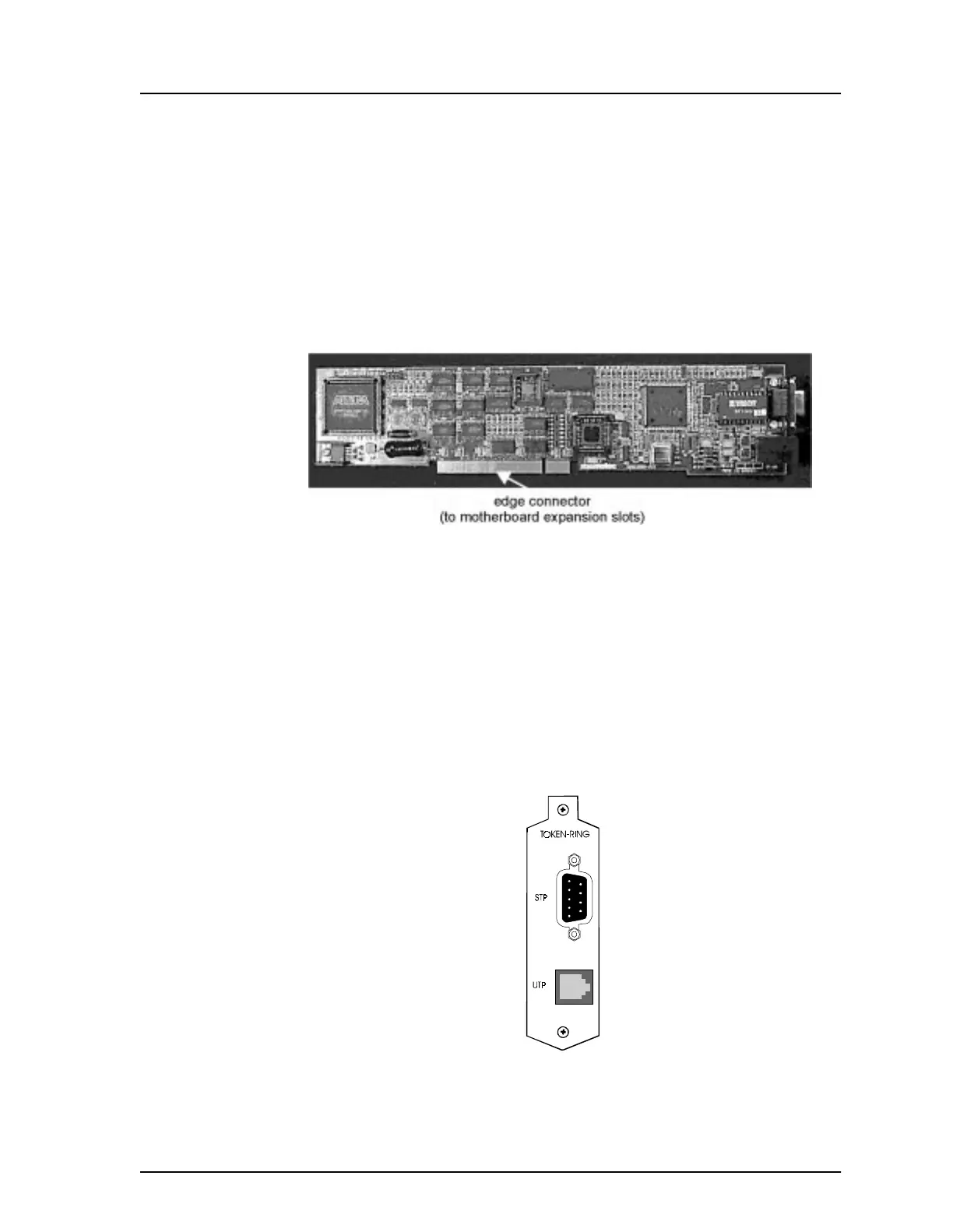

Figure 14-1 Token Ring I/O Card
Figure 14-2 Token Ring LAN I/O Card, Connector Plate
