CX950 Hardware Reference Manual
8-10
3021M100-002
Current Limit
for France
For FXO in France, there is a limit on the amount of current that may be drawn
from the Public Switched Telephone Network (PSTN). There is a transistor on th
FXO SLIM LID which monitors and controls the amperage so that it does not
draw more than the limit. The restriction is shown below in Table 8-3.
Table 8-2 FXO Jumper Settings for Australi
Location
900 Ohm
Australia
Special
LK1 n/a connect C-D
Table 8-3 FXO Jumper Settings and Current Limit for LK2
Location
Current
Limit
LK2 connect 1-2 no limit
LK2 France connect 2-3 60 mA

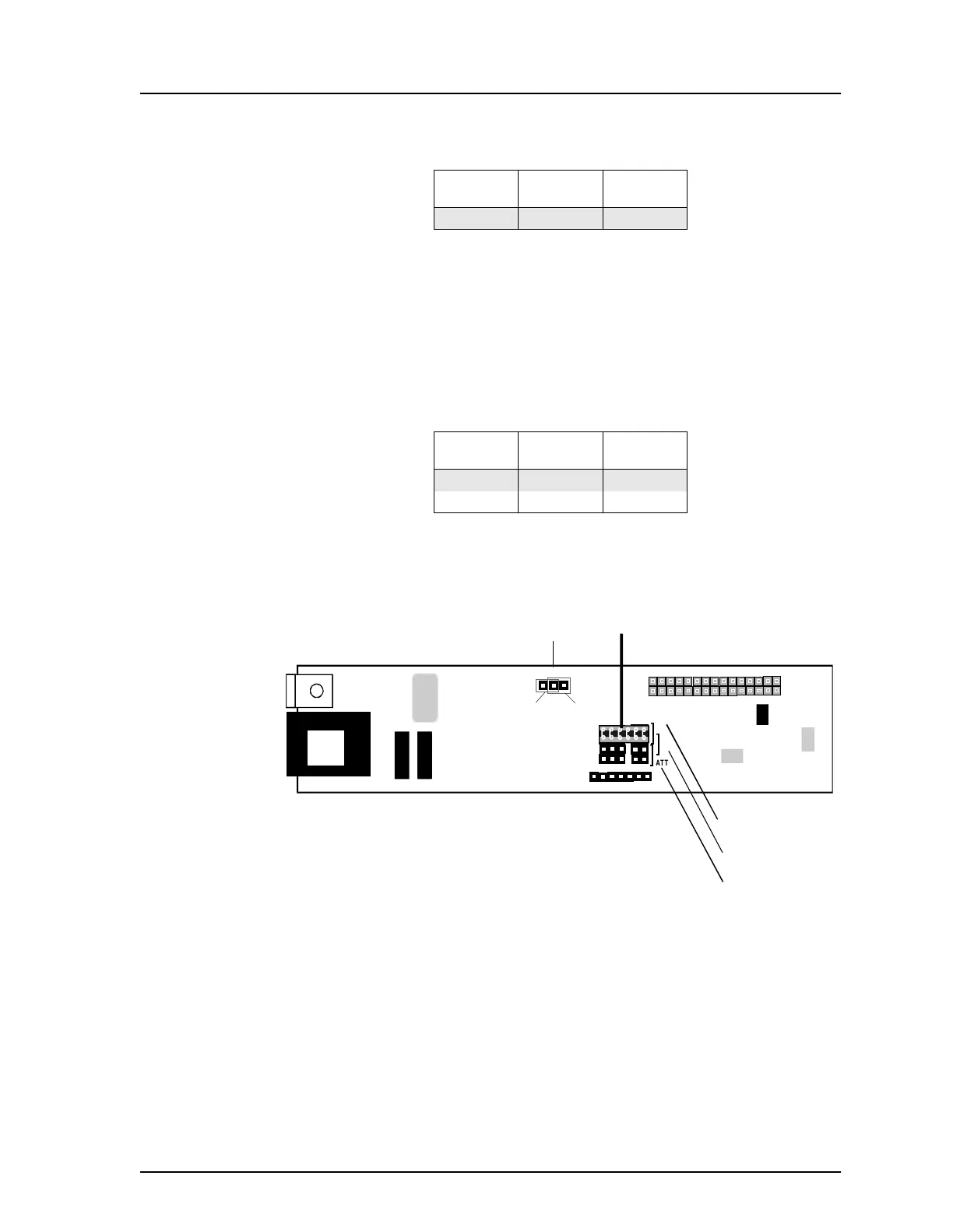

Figure 8-10 FXO Jumper Settings
P
2
ATT
600
900
Ω
Ω
RJ-11
A
B
C
D
Jumper Bank
600
900
123
Normal:1-2
France: 2 - 3
LK2
