CX950 Hardware Reference Manual
21-4
3021M100-002
21.2 RAM Installation
At some point you may need to increase the motherboard’s SDRAM. Additional
memory can be installed in the Dual Inline Memory Module (DIMM) connector at
U2; this is between slot 1 and either the ring generator or the power supply.
Procedure 3: Installing New SDRAM
This procedure assumes that you have removed the cover from the chassis
(Procedure 2).
To change memory on the motherboard:
1. Ground yourself to protect the I/O cards from electrostatic discharge (ESD).
2. Insert the upgrade module in the vacated socket (U2).
3. Replace the cover (see Procedure 2) or proceed with other work inside the
chassis.

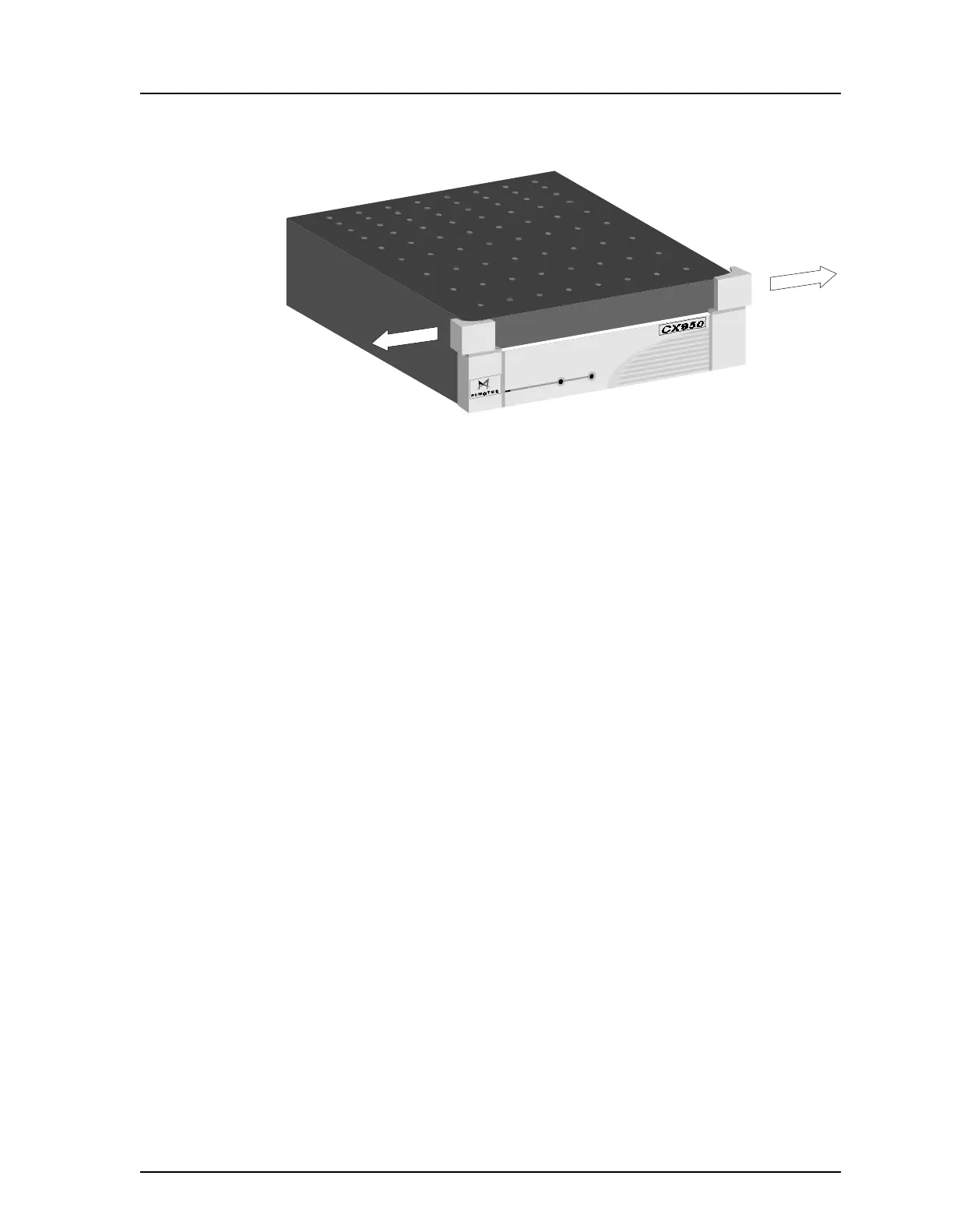

Figure 21-1 Releasing the CX950 Cover
