CX950 Hardware Reference Manual
15-2
3021M100-002
15.1 Ethernet LAN I/O Card Components
Important components on the Ethernet LAN I/O Card include:
• edge connector
• port connectors
The edge connector fixes the card to expansion slots 1 or 5 of the mother-
board.
The connector plate fixes the female 10BaseT connector and the female
Attachment Unit Interface (AUI) DB-15 connector to the chassis’ rear panel with
two Phillips-head screws and limits dust accumulation and electromagnetic
radiation.
Port selection may be set for automatic or software-controlled when both
connectors are in use.

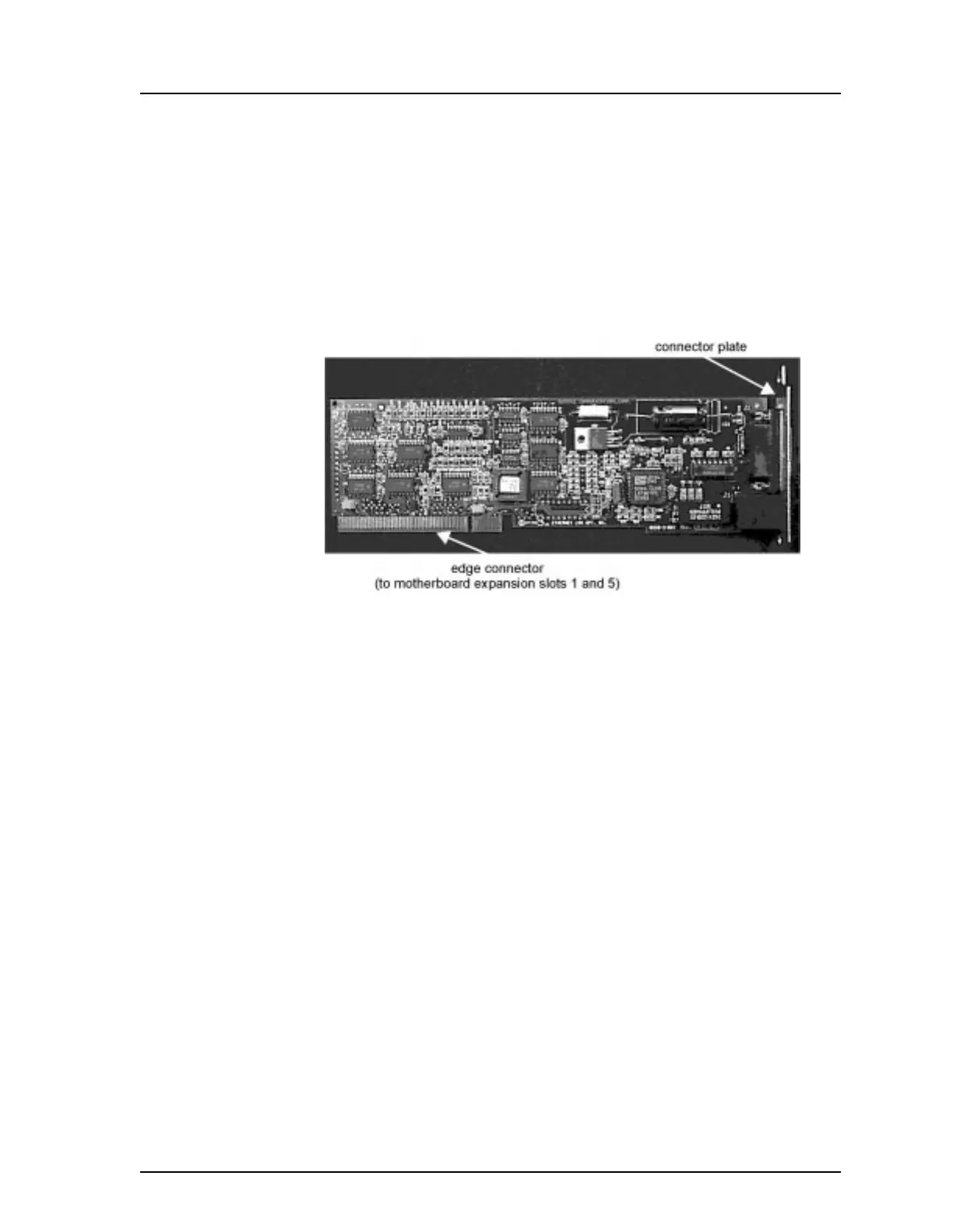

Figure 15-1 Ethernet LAN I/O Card
