9.2.4 Activating the Line Scanner
In order to configure the Line scanner it is necessary to activate the Line scanner mode
under Tools, Line scanner mode and Enable Linescanner or using the Icon on the
tool bar.
i
There are two view options available under Line scanner mode. Line scanner sighting view is showing
the position of the line and self-trigger area within the infrared image taken by the camera.
Line scanner view delivers the resulting infrared image based on temperature readings for selected
lines.
9.2.5 Positioning of the Line (Line Scanner Sighting View)
The pre-defined position of the line can be seen in the Line scanner sighting view. To access
the view go to Tools, Line scanner mode and Line scanner sighting view or use
the Icon provided.
i
This icon enables to switch between Line scanner sighting view and Line scanner view.
To define the position of the line within the infrared image, go to Line scanner configuration appli-
cation window, see Chap. 9.2.1, in the Source menu. In the Lines taken from source section using
First row and Last row field you can specify how many lines are to be considered during the measure-
ment. Number 1 stands for the first line from the top in the infrared image.

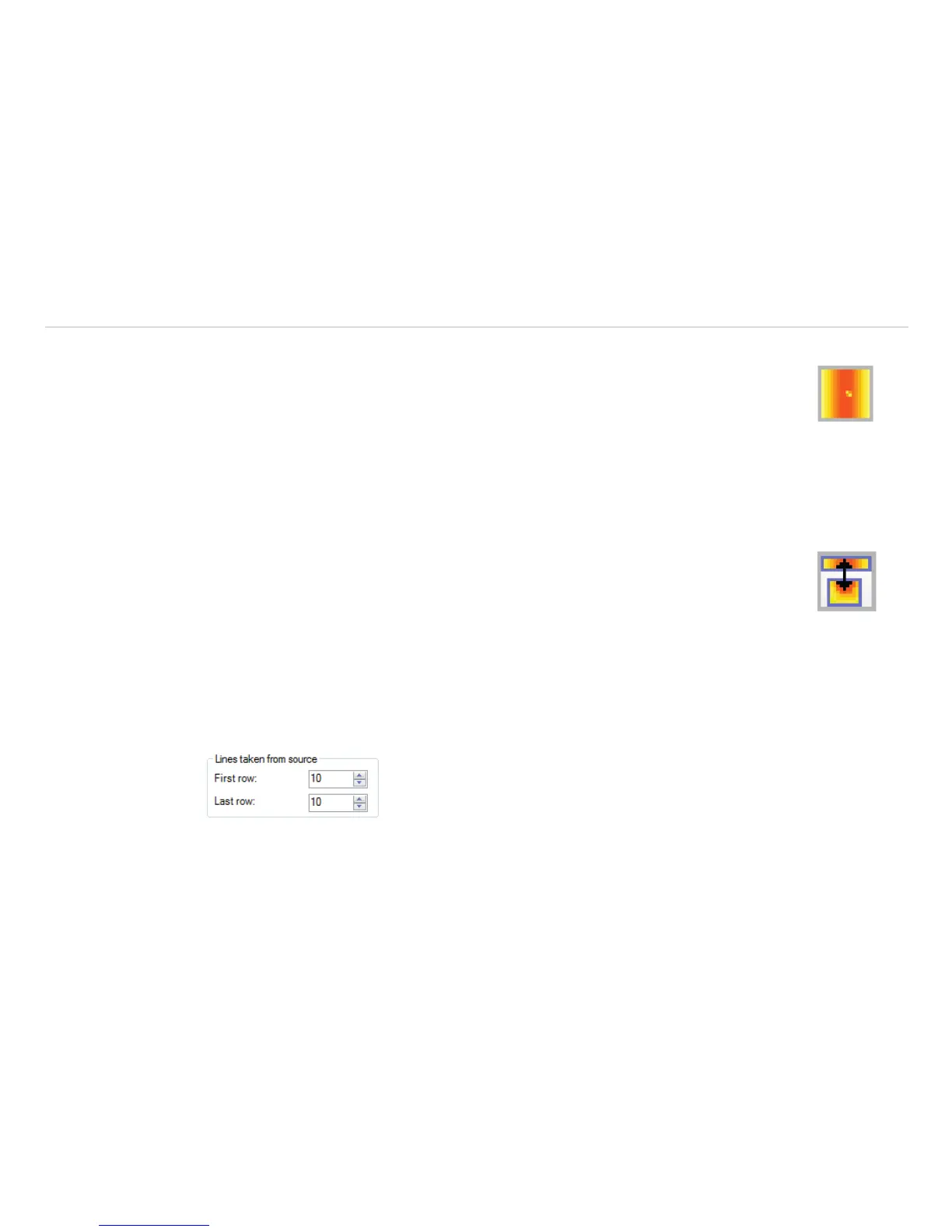

Fig. 112 View Lines taken from source
